AOS Dashboard
A read-only live monitor for Claude Code. It shows what your sessions and subagents are doing (agents, tasks, tokens, cost, file conflicts, alerts) as a streaming graph in the browser, a terminal view (aos-dash), an MCP server and a status line. It never starts, stops or steers agents. Local-only, zero dependencies.
Looking for orchestration (planning goals, launching and managing workers)? That is a different, separate and experimental project: aos-orchestrator, opt-in. This dashboard can display its goals, nothing more.
| Which piece do I want? | Repo | What it is |
|---|---|---|
| Watch my Claude Code agents live | this repo (dashboard) | Read-only monitor. Start here. |
| A standard for observable agent state | aos-1-spec | Open spec: heartbeat, plain-file state, event log. |
| Have agents planned and run for me | aos-orchestrator | Experimental engine that launches real claude workers. |

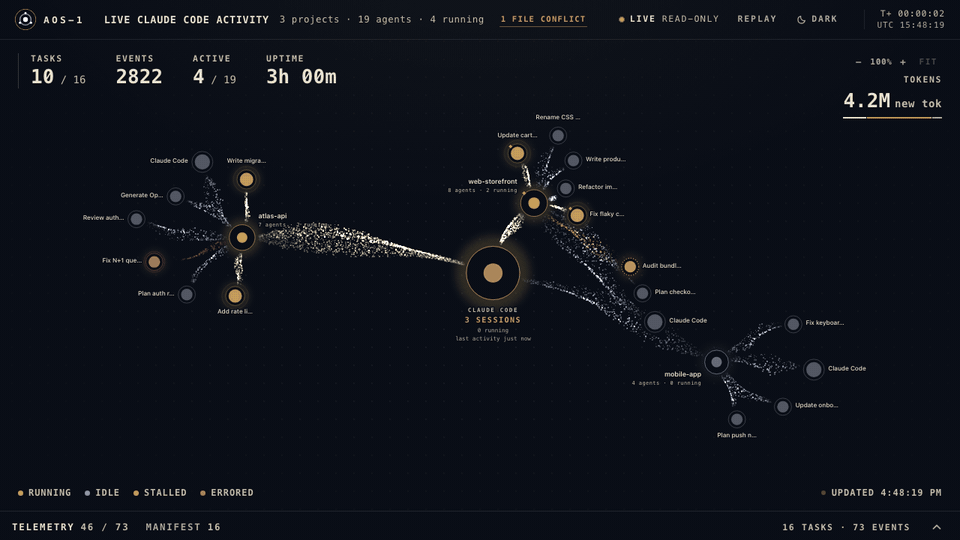

The live dashboard on a synthetic demo dataset. More screenshots.
Install the dashboard
Needs Node 18+ and the Claude Code CLI (claude on your PATH; the installer checks and stops with a message if not). No dependencies to install. On Windows it also needs the full Git for Windows (its bash runs the recipes; MinGit has none) and GNU make (winget install ezwinports.make); make then works the same from Git Bash, cmd and PowerShell (except make test: the test suites still need Linux or macOS).
git clone https://github.com/tomtomsatnav/agent-orchestration-standard && cd agent-orchestration-standard
make install # ~4 s. Builds, installs the local plugin, links `aos-dash`, starts the monitor
make doctor # checks the whole setup and tells you what to fix
make # lists every target
make install changes only: the Claude Code plugin (user scope, via claude plugin install), a symlink ~/.local/bin/aos-dash (on Windows, two launcher scripts there instead: aos-dash for Git Bash and aos-dash.cmd for cmd and PowerShell; add that folder to your PATH if aos-dash is not found), a small notifier app under ~/.claude/plugins/data/, and a monitor process on port 4318 (make install PORT=4328 uses another port). make uninstall reverses it. make stop and make uninstall stop only the monitor on PORT (4318 unless you pass PORT=). make doctor shows "no hook log yet" until you start a Claude Code session; that is normal.
Then start a new Claude Code session and open http://127.0.0.1:4318 (the page is empty until a session sends events; aos-dash is the same view in the terminal). The graph's Streams button (or Q) cycles Full / Quiet / Lines; Lines draws no particles and stops per-frame redraws, for the lowest overhead (measured). Local-only, read-only; hooks never log prompts, file contents or tool output, but do log event and tool names, working-folder and edited-file paths, transcript paths and a redacted short task description (full list: plugin/README.md). Status: personal project, macOS-first. MIT License.

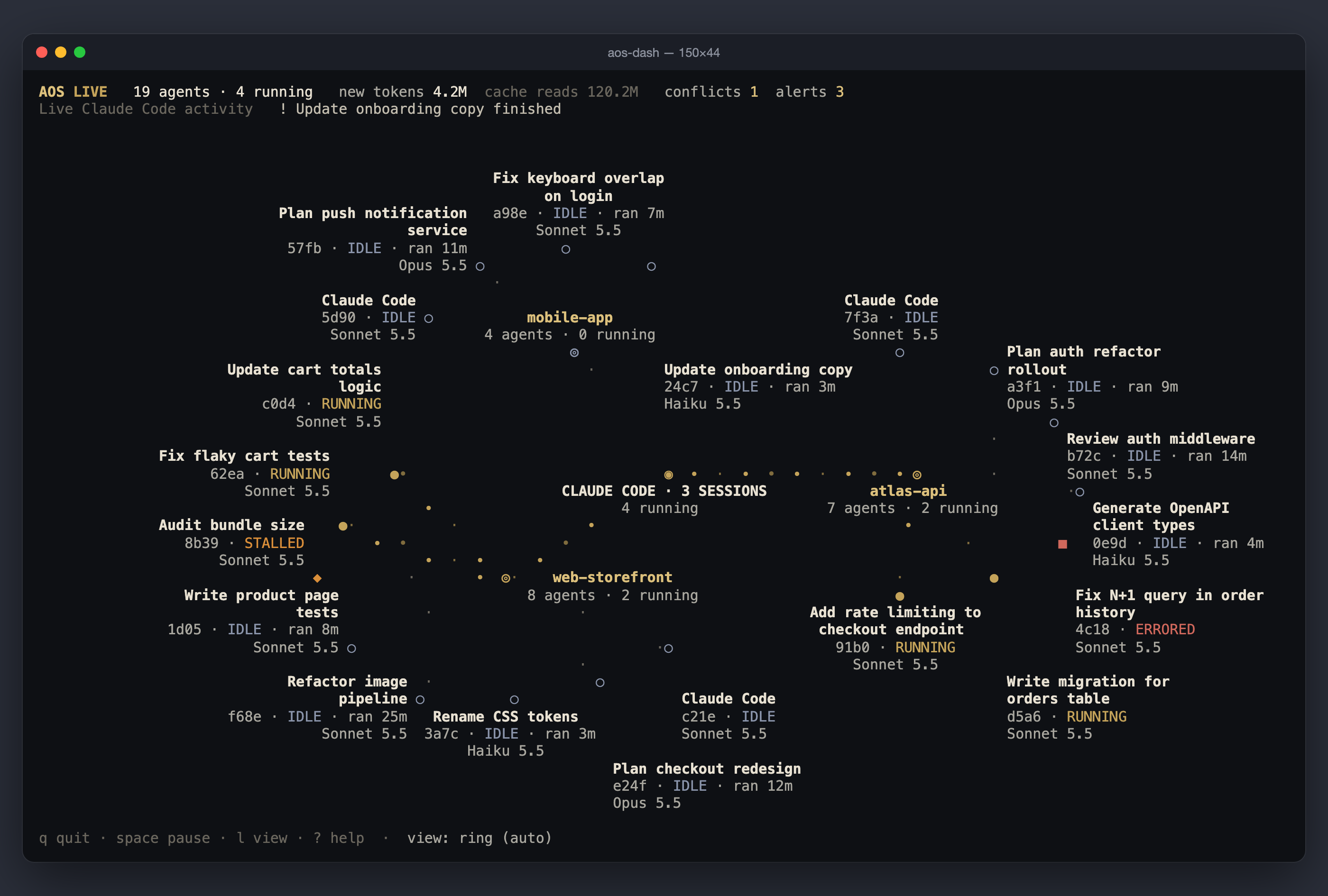

Lowest overhead: run aos-dash for the terminal view (no browser tab, no animation), and set the graph's Streams button to Lines.
GOALS panel
The GOALS button and the "Needs you" badge stay hidden until a goal exists or the control server answers on 4319. The GOALS panel only displays goals from the separate, experimental orchestrator, read from disk, but approving, pausing and starting goals needs the control server from aos-orchestrator (aos-orch serve, port 4319). Without it the panel is read-only. The files the dashboard reads are described in docs/orch-state-contract.md.
Docs
- aos-1-spec: normative specification, schemas, conformance validator, reference runner
- aos-orchestrator: orchestrator engine and its design doc
- docs/dashboard.md: the Claude Code dashboard, highlights, debugging, security and threat model
- docs/dashboard.md#guard-view: the Guard view (verify verdicts on sessions, Needs-you on integrity rejections) and the opt-in auto-verify Stop hook
- docs/architecture.md: how events flow from hooks to the UI
- docs/screenshots.md: screenshot gallery
- docs/cross-machine.md: opt-in, read-only view of agents and usage across several machines over your existing SSH access (no new ports)
- docs/otel.md: optional exact cost from Claude Code's OpenTelemetry metrics (main vs subagent, by subagent type)
- docs/overhead.md: measured monitor CPU and memory
- docs/orch-state-contract.md: the on-disk layout the dashboard reads from an orchestrator
- plugin/README.md: plugin details and the exact privacy field list
Contributing
Issues and small pull requests are welcome. Edit the sources in the repo root (monitor.mjs, hooks/, ui/, cli/), then run make build and make test; keep it zero-dependency and Node 18 compatible.
