📦 @goodandready/dsh-clinebot

Native ClineBot / ClinePass Provider Companion for DeepSeek Harness

🇬🇧 English • 🇷🇺 Русский • 🇨🇳 中文说明

⚡ Overview & The Problem

ClinePass (https://cline.bot) is a subscription service providing developers with 2–5x higher rate limits across premier open-weights coding and reasoning models through a single OpenAI-compatible endpoint (https://api.cline.bot/api/v1).

Integrating ClinePass into DeepSeek Harness (DSH) natively poses key challenges:

1. No /v1/models Discovery: GET /v1/models on api.cline.bot returns 404 Not Found. Dynamic discovery fails silently or leaves the provider with 0 models.
2. Model Identifier Formats: Models require the specific prefix cline-pass/ (e.g. cline-pass/deepseek-v4-flash, cline-pass/kimi-k3).
3. Quota Tracking: Rolling 5-hour and weekly limits need clear in-browser visualization.
4. Credential Security: Storing API keys directly in plain settings is insecure.

@goodandready/dsh-clinebot provides a complete solution:

• 🚀 One-Click In-App Updater: Upgrade @goodandready/dsh-clinebot directly from the DSH UI or trigger secure loopback updates via /dsh-clinebot/update.
• ⚡ SWR Quota & Health Caching: Instantaneous response time (<2ms) on status queries with background revalidation.
• 🔀 Smart Quota-Aware Failover: Automatic multi-account rotation on stream HTTP 429 and exhausted quota (with 30s storm protection; current request is not retried, subsequent chat requests use the next available account).
• 🖥️ Plugin configuration page: Open the installed ClineBot plugin and choose configure. The page shows the credential name, models, quota, and accounts. It is not a separate sidebar section.
• 🔄 Dynamic Subscription Model Sync: Automatically pulls real models included in your ClinePass plan directly from GET /api/v1/users/me/plan with one-click DSH provider sync. Only actual plan models are registered in DSH, while the built-in catalog serves as a rich properties reference and fallback when unsynced.
• ⚠️ Quota Exhaustion Alerts: Real-time visual warning banners when 5-hour rolling limit reaches 80% (warning) and 95% (exhausted), complete with countdown to reset.
• 📈 Session Metrics Telemetry: Live dashboard tracking real in-flight DSH chat requests through the ClineBot provider, prompt and completion tokens, stream latency, and error counts since process startup.
• 📊 Live Quota Dashboard: Visual progress bars for 5-hour rolling limits and weekly windows from the official GET /users/me/plan/usage-limits API.
• 🔑 In-UI Key Storage: Paste your API key directly in the UI; it is saved securely via ctx.credentials.set() into ~/.dsh/.credentials.yaml.
• 🎯 Model Picker Management: Granular checkboxes to choose which models appear in the chat picker.
• 💬 Slash-Command /cline: Check quota, limits, warnings, session metrics, latency, and active model directly from the DSH chat console.

🏛️ Architecture

graph LR
    subgraph UI [DSH Web Interface]
        Page["Dedicated Page (Settings -> ClineBot)"]
        QuotaBar["5-Hour & Weekly Progress Bars & Warning Banner"]
        KeyInput["Direct Key Paste & Save"]
        ModelPick["Dynamic Model Sync & Picker Controls"]
        StatsCard["Session Metrics Telemetry"]
    end

    subgraph PluginHost [dsh-clinebot Host Runtime]
        HttpEndpoints["API: /dsh-clinebot/*"]
        ClientCore["lib/cline-client.js"]
        ModelCatalog["lib/models.js (Curated + Dynamic Plan)"]
        SlashCmd["Command: /cline"]
    end

    subgraph DSHCore [DeepSeek Harness Services]
        Credentials["Credentials Service (~/.dsh/.credentials.yaml)"]
        PiAi["Settings: llm-pi-ai.providers.clinebot"]
    end

    subgraph Upstream [Cline Cloud]
        ClinePass["api.cline.bot/api/v1/chat/completions"]
        ClineQuota["api.cline.bot/api/v1/users/me/plan/usage-limits"]
        ClinePlan["api.cline.bot/api/v1/users/me/plan"]
    end

    Page -->|GET /status & /usage| HttpEndpoints
    KeyInput -->|POST /save-key| HttpEndpoints
    ModelPick -->|POST /models/sync| HttpEndpoints
    HttpEndpoints --> Credentials
    HttpEndpoints --> ClientCore
    ClientCore --> ModelCatalog
    HttpEndpoints -->|Atomic Mutate| PiAi
    ClientCore -->|Chat| ClinePass
    ClientCore -->|Usage Limits| ClineQuota
    ClientCore -->|Plan Features| ClinePlan

✨ Features & Module Breakdown

• lib/models.js: Manages the dynamic subscription catalog and fallback models with full reasoning effort mappings (off: null, low, medium, high, max), upstream 200k context limit declarations, user-defined custom models, and dynamic subscription plan model parsing (parsePlanIncludedModels, getAllModels, getDynamicModels).
• lib/cline-client.js:
  • fetchUsageLimits: queries GET /users/me/plan/usage-limits, GET /users/me/plan, and GET /users/me with in-memory caching.
  • sessionStats / recordSessionRequest: in-memory telemetry recording requests count, tokens, latency, and timestamps.
  • saveCredentialKey: writes credentials directly into ~/.dsh/.credentials.yaml.
  • smokeChat: tests latency via non-streaming ping and updates session metrics.
  • buildPiAiProvider: builds the DSH llm-pi-ai structure (api: 'openai-completions') with full reasoning effort protocol compliance (compat.supportsReasoningEffort: true).
• lib/index.js: Cordis service module managing routes (including POST /dsh-clinebot/models/sync), quota warnings threshold evaluation, credentials, and registering the /cline slash command.
• lib/client.js: Configuration page on the plugin row (plugins.row.config) with live quota bars, an exhaustion warning, session metrics, one-click plan sync, and a fallback plugins card (settings.plugin.item). There is no settings.section sidebar entry.

📦 Installation

dsh plugin --profile web add @goodandready/dsh-clinebot

Restart your DeepSeek Harness instance and refresh the browser.

💬 Slash-Command /cline

From any DSH chat session, type /cline to inspect quota, warning alerts, and session telemetry:

### 🤖 ClinePass Status (ClinePass)
* Latency: ✅ 210 ms
* Active Key: CLINEBOT_API_KEY (credentials)
* Default Model: `cline-pass/deepseek-v4-flash`

⏱ 5-Hour Window: [████░░░░░░] 42% (resets: 18:00)
📅 Weekly Window: [██████░░░░] 60% (resets: Sep 8)
* Account: `developer@example.com`

📈 Session Metrics:
* Requests: 14 calls
* Tokens: ~8,450 (Prompt: 6,100 | Completion: 2,350)
* Last Latency: 210 ms

⚙️ Configuration Reference (DSH Settings & Web UI)

In modern DeepSeek Harness (0.1.7+), settings are managed natively via the DSH Web UI Settings card or PUT /dsh-clinebot/config, with API keys persisted securely in DSH Credentials storage (~/.dsh/.credentials.yaml).

dsh-clinebot:
  enabled: true
  baseUrl: https://api.cline.bot/api/v1
  apiKeyEnv: CLINEBOT_API_KEY
  defaultModel: your-default-model
  proxyMode: true
  disabledModels: []
  customModels: []
  modelReasoningDefaults:
    your-reasoning-model: high
  modelContextOverrides: []
  statsPath: ~/.dsh/clinebot-stats.json
  timeoutMs: 30000
  smokeTimeoutMs: 60000
  streamIdleTimeoutMs: 60000
  accounts:
    - label: Team Key
      apiKeyEnv: CLINEBOT_API_KEY_2

Configuration Parameters

🌐 HTTP API Endpoints

All endpoints are registered under /dsh-clinebot/* and protected against untrusted cross-site origins (same-origin and loopback allowed). Control endpoints enforce a 256 KiB request payload limit; the loopback proxy endpoint supports up to 64 MiB payloads (MAX_PROXY_BODY_BYTES):

Management & Control Endpoints (Max 256 KiB)

• GET /dsh-clinebot/status — Live status report including provider health, active credential, quota, and session metrics.
• GET /dsh-clinebot/config — Diagnostic endpoint returning public configuration without secret keys.
• PUT /dsh-clinebot/config — Update configuration fields. Accepts only known schema properties (unknown fields or deprecated enabledModels return 400 Bad Request).
• POST /dsh-clinebot/key/verify — Validates a candidate API key against api.cline.bot and returns account email and plan name.
• POST /dsh-clinebot/save-key — Saves a key into DSH credentials service under a valid CLINEBOT_API_KEY* name.
• POST /dsh-clinebot/models/sync — Synchronizes models with your active subscription plan.
• POST /dsh-clinebot/models/toggle — Toggles models via disabledModels (atomic Volatile preservation).
• POST /dsh-clinebot/models/custom / DELETE /dsh-clinebot/models/custom — Manage custom user-defined models.
• POST /dsh-clinebot/models/context / DELETE /dsh-clinebot/models/context — Manage model context length overrides.
• POST /dsh-clinebot/accounts — Add account to the multi-account pool.
• POST /dsh-clinebot/accounts/delete — Delete account from the pool with atomic credential preservation.
• POST /dsh-clinebot/accounts/active — Switch or pin active account (or empty for auto least-used routing).
• POST /dsh-clinebot/stats/reset — Reset session request and token statistics.
• POST /dsh-clinebot/smoke — Runs a live latency test ping.
• GET /dsh-clinebot/update/status — Query available GitHub releases and plugin updates.
• POST /dsh-clinebot/update/apply — Apply version upgrade with process-group cleanup and lockfile sync.

OpenAI-Compatible Loopback Proxy (Max 64 MiB)

• POST /dsh-clinebot/v1/chat/completions — Transparent local proxy supporting streaming SSE and non-streaming responses, Bearer token authentication, sticky session affinity with least-used quota allocation, body read watchdog (streamIdleTimeoutMs), and automatic 429 failover.
• GET /dsh-clinebot/v1/models — OpenAI-compatible catalog listing all active plan and custom models.

Visual verification

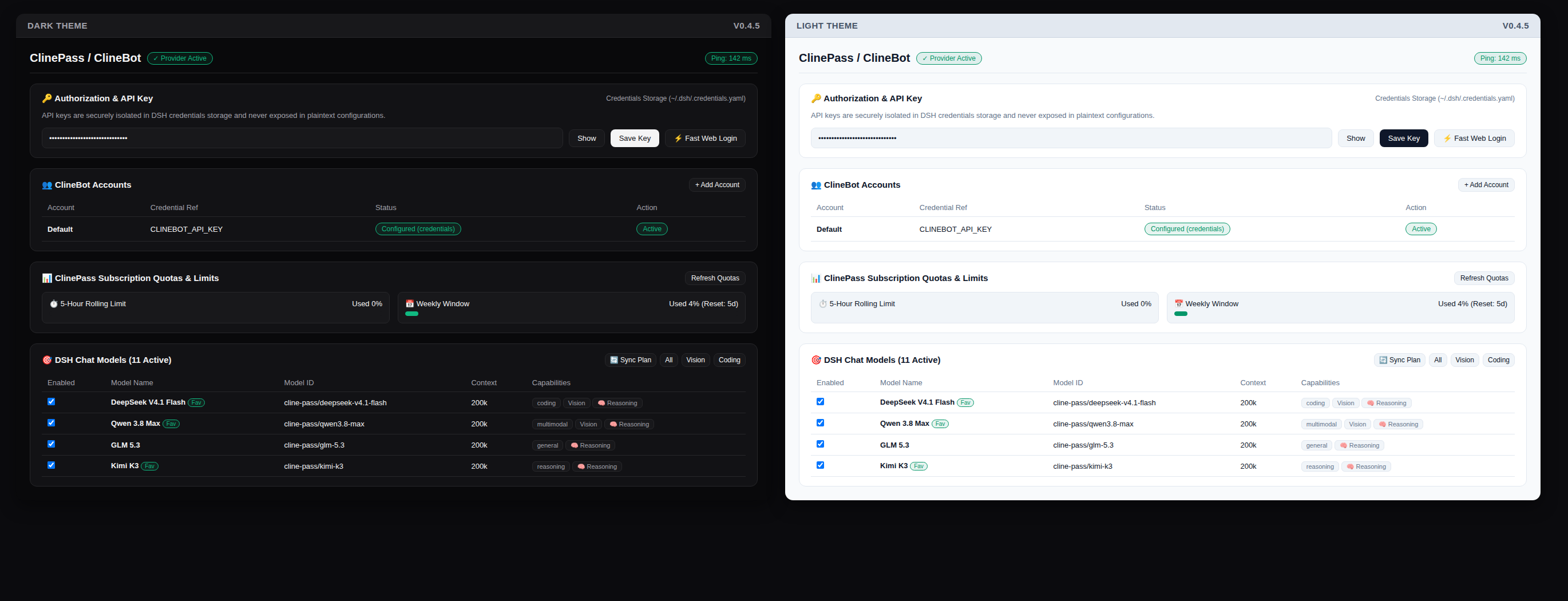

Settings card in DeepSeek Harness, Dark and Light themes side by side:

🧪 Testing

Run the automated test suite:

npm test

📄 License

MIT © GooDAnDReaDY
