peek

A standalone database viewer that also exposes itself as an MCP server, so an AI can drive the interface a human is looking at.

English · 中文

Human clicks and MCP tool calls travel the same command channel. There is no second write path, no shadow state for the AI, and no reconciliation step: the main process holds the one source of truth, every mutation is a Command, and the renderer only ever receives patches. Ask Claude to open a table and the panel appears on screen; open it yourself and the AI sees the same workspace on its next read.

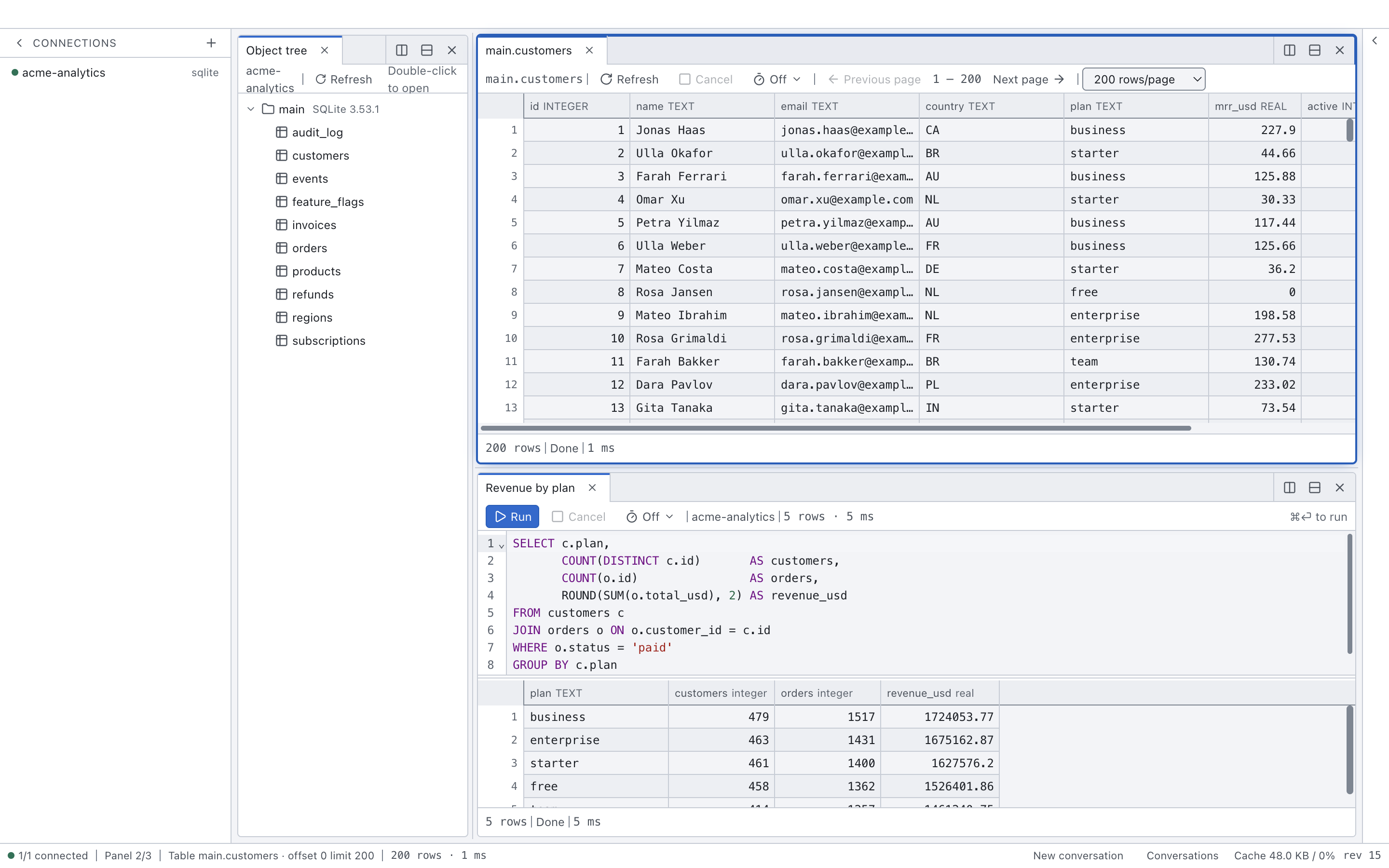

_{Every screenshot in this README is one set_layout call — see apps/desktop/scripts/screenshot.mjs, which drives the built app over its own MCP endpoint the way an AI client would.}

Why peek

• The agent drives the window it is sitting in. Claude Code runs embedded over ACP as a sixth kind of view, connected back to peek's own MCP server.
• Adding a database peek has never heard of is installing a directory, not editing this repository. All six drivers load from ~/.peek/packages/<id>/ rather than being compiled in.
• Read-only is enforced by the server, not by a keyword filter. PostgreSQL and MySQL run inside a read-only transaction, SQLite is opened with the read-only flag plus PRAGMA query_only. There is no client-side keyword allowlist anywhere.
• Result rows reach the agent only as an explicit attachment the human stages — a cell, a row selection, a view — never as ambient context.
• Layout is state. The tiled tree is real state driven by Commands, so set_layout from an MCP client and a dragged divider are the same operation.

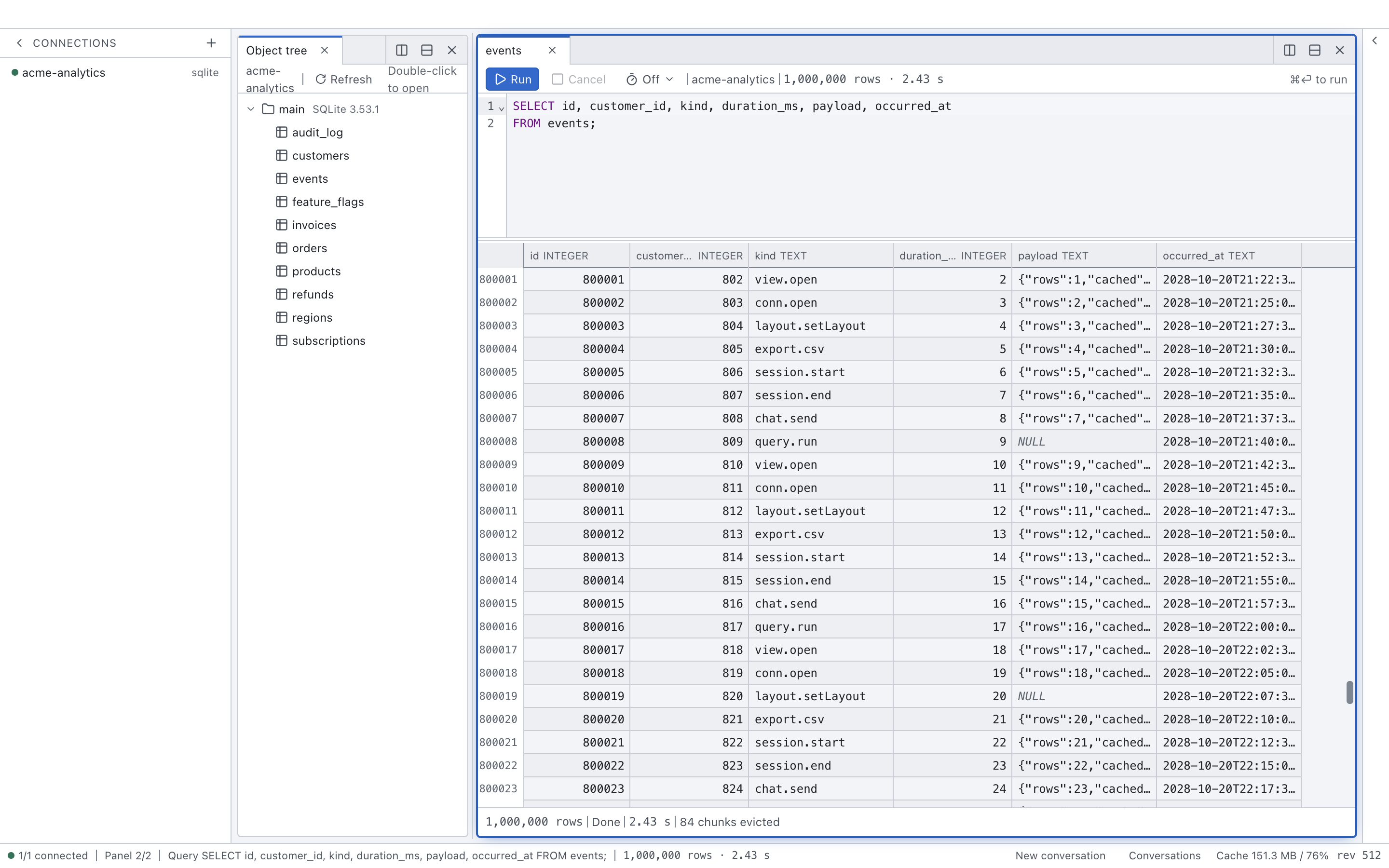

• A million rows scroll. No DOM dimension is derived from the row count: a spacer sized rowCount × rowHeight is silently clamped by Chromium at about 699,000 rows, past which rows are not slow, they are unreachable.
• Credentials never land in plaintext on disk. They are encrypted by the OS keychain through Electron's safeStorage, stored apart from the config that names the server.

Architecture

Process model

┌────────────────────────────────────────────────────────────────┐
│ renderer (React 19)                                            │
│   tiled panels · virtualized grid · tree · inspector · editor  │
│   mirror store — a read-only replica, never edited locally     │
└────────▲──────────────────────────────────┬────────────────────┘
         │ state patches (IPC)              │ user intent → Command (IPC)
┌────────┴──────────────────────────────────▼────────────────────┐
│ main                                                           │
│   Command Bus  ◄────  MCP HTTP server (127.0.0.1:7332)         │
│   Workspace Store — the source of truth, immer patches out     │
│   Connection Manager                                           │
└────────┬───────────────────────────────────────────────────────┘
         │ spawn + control: one utilityProcess per connection
┌────────▼───────────────────────────────────────────────────────┐
│ driver host (utilityProcess)                                   │
│   driver instance · query execution · server-side cursors      │
│   result chunks ─────── MessagePort, direct ──────► renderer   │
└────────────────────────────────────────────────────────────────┘

Three properties fall out of that shape:

• Drivers run out of process. One utilityProcess per connection. A wedged query or a driver crash cannot take the window down, and killing the process is an unconditional cancel.
• The control plane goes through main; the data plane does not. Commands and state patches pass through main. Result chunks travel a MessagePort handed directly from the driver host to the renderer — once transferred, main's end is neutered, so it cannot intercept a data frame even in principle. That is the physical guarantee behind "no double serialization hop for large results".
• MCP read tools read main's store directly, with zero renderer round-trips.

Command Bus

  human clicks  ─┐
                 ├─► Command Bus ─► zod validation ─► handler (pure) ─► patch broadcast ─► result
  MCP tool call ─┘         │
                           └─► command log (source: ui | mcp | system)

Every state change is a Command named domain.verb — conn.open, view.open, query.run, layout.split, and so on. Handlers are pure reducers over the workspace draft; side effects are returned as plans and executed afterwards. An MCP tool is therefore a thin shell: declare an input schema, map it to one or more Commands, render the outcome. The command log records the source of each entry, which makes a session both auditable and replayable.

Capability model

peek does not flatten every database into a lowest common denominator. Each driver advertises what it can do, and both the UI and the MCP tools adapt:

introspect · tabularQuery · collectionScan · keyValue · vectorSearch · valuePeek · cancel

postgres      introspect · tabularQuery · collectionScan · valuePeek · cancel
mysql/sqlite  same, via a shared dialect layer
redis         introspect · collectionScan · keyValue · valuePeek · cancel
qdrant        introspect · collectionScan · vectorSearch · valuePeek

Qdrant declines cancel rather than pretending: it has no server-side statement cancellation, and the REST client offers no per-request abort, so the driver can only stop between pages. A capability is a promise about what the UI may offer, which is why "can stop at a page boundary" is not allowed to pass as the same thing.

Adding a database is a package and no line of peek: the driver id, the connect form, the capability set, the view kinds and the MCP tools all come out of the package's own peek-package.json at load time, so a database peek has never heard of reaches the picker by being copied into ~/.peek/packages/. It used to be "a package plus a line" — one entry in connections/registry.ts, one in the drivers array of driver-host/entry.ts, and five more elsewhere — and those tables are gone. Nothing in packages/core changed to admit Redis, Qdrant, MySQL, SQLite or Neo4j; the known gaps that surfaced while proving that are listed under Known limitations.

The per-driver table is what the UI predicts before a connection exists; once connected, the session's own capability set wins, so an older server can advertise less.

Capabilities are answered at three grains, because "can this driver sort?" turned out to be the wrong question:

• Per driver — the table above. Enough to decide whether to draw a SQL editor at all.
• Per collection — CollectionSchemaInfo.browse lets a driver narrow the answer for one collection: which columns are sortable, which are filterable, and whether sorting gives up paging. Qdrant reports exactly the payload keys that carry an index, so ordering by an unindexed key is a named BAD_REQUEST from peek instead of a 400 from the server. A Redis keyspace has no global order and says so, so it draws inert headers and a forward-only pager. This grain is answered to MCP callers but does not yet reach the renderer, which is why a qdrant table view also draws inert headers — see Known limitations.
• Per value — core/values.ts fixes one canonical JS representation per LogicalType, and all four drivers are asserted against it on a real server. Two bugs fell out of writing it down: a PostgreSQL BIGINT 1 used to arrive as the string "1" while MySQL and SQLite sent the number, so the same column right-aligned in one connection and left-aligned in the next; and a DATE arrived as a Date at local midnight, which serializes to the previous day anywhere east of Greenwich. Dates, times, timestamps and intervals are now strings everywhere, and a 64-bit integer is a number while that is exact and a decimal string once it is not.

FilterSpec carries a target for the same reason: on a relational table a filter names a column, while on a schemaless collection it names a payload field that may not be in the result at all. A Qdrant scan returns id plus one payload JSON column, so by default only id is filterable — but project a payload key into a column with columns and the driver reports it as filterable. The answer to "can I click this header to filter?" is now something the type system can state.

Chunk streaming and backpressure

Result sets are streamed as columnar frames, never materialized whole:

{ resultId, seq, schema?: ColumnDef[],  // schema on seq 0 only
  cols: unknown[][],                    // column-major, ready for Arrow later
  rowCount: number,
  done?: { rows, elapsedMs, truncated?, nextCursor? } }

• PostgreSQL rows come off a server-side DECLARE / FETCH FORWARD cursor, 500–2000 rows per frame, targeting 256KB–1MB.
• The renderer keeps frames exactly as received and binary-searches (row, col) — no pivot to row objects, no copy.
• Cache ceiling ~200MB with LRU eviction; chunks near the viewport (±3000 rows) are protected.
• Backpressure is an ack window: the host pauses once 4 frames are unacknowledged, and the renderer withholds the ack when the cache is near its ceiling or the viewport has fallen more than 200,000 rows behind. Scrolling releases it. A stream held this way reports paused, which is a terminal-but-healthy state — the rows already loaded are valid.
• Values over 4KB arrive as a truncated preview carrying a ref; the full value is fetched on demand through valuePeek.

Quick start

Requirements: Node >= 22 (developed on 26.2), pnpm 10.32.1 (pinned via packageManager), and at least one database to point at. Development and testing have happened on macOS / Apple Silicon only; nothing in the code is platform-specific, but no other platform has been exercised.

pnpm install          # pnpm 10 blocks install scripts by default; electron/esbuild/rollup are
                      # allow-listed in pnpm-workspace.yaml, so no extra approval step is needed

pnpm dev              # electron-vite dev: opens the window, renderer HMR, MCP server on 7332
pnpm build            # production bundles into apps/desktop/out (main / preload / renderer)
pnpm -r typecheck     # tsc --noEmit across every package; strict mode, no `any`
pnpm -r test          # node:test, 2567 tests today (2097 desktop + 165 core + 60 postgres
                      #                       + 41 redis + 38 qdrant + 83 mysql/sqlite + 83 neo4j)

The desktop suite is pure logic — no Electron, no database. Each driver suite is an integration suite that talks to a real server, and each reads its target from the environment:

PEEK_TEST_PG_URL="postgresql://user@localhost:5432/your_db" \
PEEK_TEST_REDIS_URL="redis://localhost:6379" \
PEEK_TEST_QDRANT_URL="http://localhost:6333" \
PEEK_TEST_MYSQL_URL="mysql://root:pw@localhost:3306/peek_test" \
PEEK_TEST_NEO4J_URL="bolt://localhost:7687" PEEK_TEST_NEO4J_PASSWORD="…" \
pnpm -r test

Neo4j is the one that needs a password rather than a URL alone, and it has no default. That is deliberate: Neo4j rate-limits failed authentication, so a suite that guessed at a password would make the next, correct attempt fail too. A throwaway server is one line:

docker run -d --rm --name peek-test-neo4j -p 7687:7687 -e NEO4J_AUTH=neo4j/peektest123 neo4j:5

The Redis, Qdrant and SQL suites provision and remove their own fixtures (all Redis keys under a peek:test: prefix, a peek_test_* Qdrant collection, throwaway MySQL tables, a temp-directory SQLite file) and skip themselves entirely when the server is unreachable, so an absent service is never a failure.

There is also an end-to-end check that no unit test can stand in for, because it launches the built app rather than importing source:

pnpm --filter @peek/desktop build
node apps/desktop/scripts/smoke-drivers.mjs

It starts Electron on a throwaway port, user-data directory and config directory — so an installed peek neither blocks it nor is disturbed by it — then drives its MCP endpoint the way an AI client would: connect, introspect, then open_view on the first thing the tree says is openable, for every driver whose PEEK_TEST_* variable is set. That path covers what unit tests cannot: that driver-host.js resolves every driver package, that no two drivers fight over process.parentPort, and that chunks reach the renderer over the MessagePort.

Two caveats worth knowing before you run it. Every statement it issues is read-only, so it is safe against a live database — row counts are measured against the server's own count(*) rather than hard-coded, precisely because the development database keeps changing underneath. But the schema is not discovered: the suite asserts on specific tables in the public schema of one particular development database, so pointing PEEK_TEST_PG_URL at an arbitrary database will fail those assertions — and so does leaving it unset, because the fallback in the test file is a different database again. Making the fixture self-provisioning is open work; until then, PostgreSQL is the one suite that needs its variable set even to fail honestly.

Neo4j has a smaller version of the same requirement: the smoke check walks the namespace tree and opens the first thing carrying a ref, so an empty database has nothing to open and the row fails. A throwaway server started with the docker run line above is empty, so seed it once:

docker exec peek-test-neo4j cypher-shell -u neo4j -p peektest123 \
  "CREATE (a:PeekSmoke {name:'Ada'})-[:PEEK_SMOKE_KNOWS]->(b:PeekSmoke {name:'Bob'})"

Neo4j is also the only row that opens a second view — a graph, the one package-contributed view kind in the tree. That step is what exercises the Tier C seam end to end: view.open accepting a spec the kernel has no schema for, the registration composing Cypher inside the main process, and the result arriving through the same machinery a table's scan uses.

The chat panel's security claims have their own runnable check, for the same reason: a sentence in a comment saying "the agent inherits none of your Claude Code configuration" is a sentence that quietly stops being true.

node apps/desktop/scripts/verify-chat-security.mjs             # spends tokens: four real model turns
node apps/desktop/scripts/verify-chat-security.mjs --offline   # free, CI-safe, skips the model

It verifies the shape of the session sandbox, that every tool on the wire comes from a tool file in this repository, that a prompt asking for a shell gets no shell, that a database cell phrased as an order is not obeyed, that the bearer token reaches neither the transcript nor stdout, and that the agent's own tool calls come back through peek's MCP server. Exit code 0 means every check that ran passed. The online mode deliberately does not isolate your own Claude Code configuration — the whole point is that your real settings do not leak into the session, and isolating them would test nothing.

Using the app

The window is a normal database GUI, and nothing about it is AI-specific:

• Connect from the sidebar. Pick a driver, paste a connection string, and the namespace tree opens with it. The tree is lazily loaded a level at a time and cached until you refresh it. A connection that works is remembered under Saved — there is no "save" button, because the only thing worth remembering is a connection that has actually completed a handshake. Each saved entry says whether its password is in the system keychain, and can be reconnected, edited or forgotten. If the keychain is unavailable, peek says so and saves no password rather than writing one to disk.
• Stop a query with the cancel button in any result view. If the driver cannot cancel — Qdrant is the one that cannot, and says so rather than pretending — the button is disabled with the reason on it. Nothing runs forever regardless: every fetch has a deadline behind it.
• See what went wrong from the badge in the status bar. It counts errors and opens a panel with the last hundred, each copyable, so a toast that faded while you were reading rows is still there.
• Browse a table by clicking it in the tree: a virtualized grid, scrollable to the last row of a million-row table. Shift-drag the scrollbar for 10× precision, Option-drag for 50×.
• Write SQL in a query view. ⌘⏎ runs the statement; the editor is CodeMirror 6 with SQL syntax.
• Inspect a value by double-clicking a cell; a truncated one opens on a single click and pulls the rest through valuePeek. Anything over 4KB only ever travels as a preview until you ask for it.
• Arrange panels with ⌘\ (split left/right) and ⌘⇧\ (split top/bottom). Drag a divider to resize; the ratio is committed on release as a layout.setRatio command.
• Work in tabs. Opening a view puts it in the focused panel as a new tab rather than replacing what is there, so clicking a second table no longer costs you the first one. ⌘W closes the active tab and the panel stays behind, empty; ⌘⇧W closes the panel itself. When a tab closes, its right neighbour takes over, else its left — never a jump to the front. A panel holds 12 tabs at most.
• Move a view by dragging a tab. The centre of a panel body stacks the view there as a new tab; the four edges split that panel and drop the view into the new half; the tab strip inserts it at the caret, which is also how you reorder tabs inside one panel. Nothing is ever closed or swapped by a drag. Esc, or releasing outside any panel, cancels. Nothing moves until the main process has applied the command — the preview you see while dragging is only a preview.
• Without the mouse: ⌘1–⌘8 show the Nth tab and ⌘9 the last one, ⌃Tab / ⌃⇧Tab cycle through them, and ⌘⌥1–⌘⌥9 focus a panel by its visual order. ⌘⌥←↑↓→ moves the focus, ⌘⇧←↑↓→ moves the focused view into the neighbouring panel as a tab, and ⌘⌥⇧←↑↓→ sends it into a new panel beyond that neighbour. Inside a tab strip, ←/→ move between tabs and switch as they go, Home/End jump to the ends, and Delete/Backspace close a tab. While the SQL editor has focus the arrow shortcuts are left to it — Esc is the way back out.
• Switch language in the status bar. English is the default everywhere, deliberately: the window is a surface shared with an AI and with bug reports, so it should read the same on every machine.

Using it from Claude Code

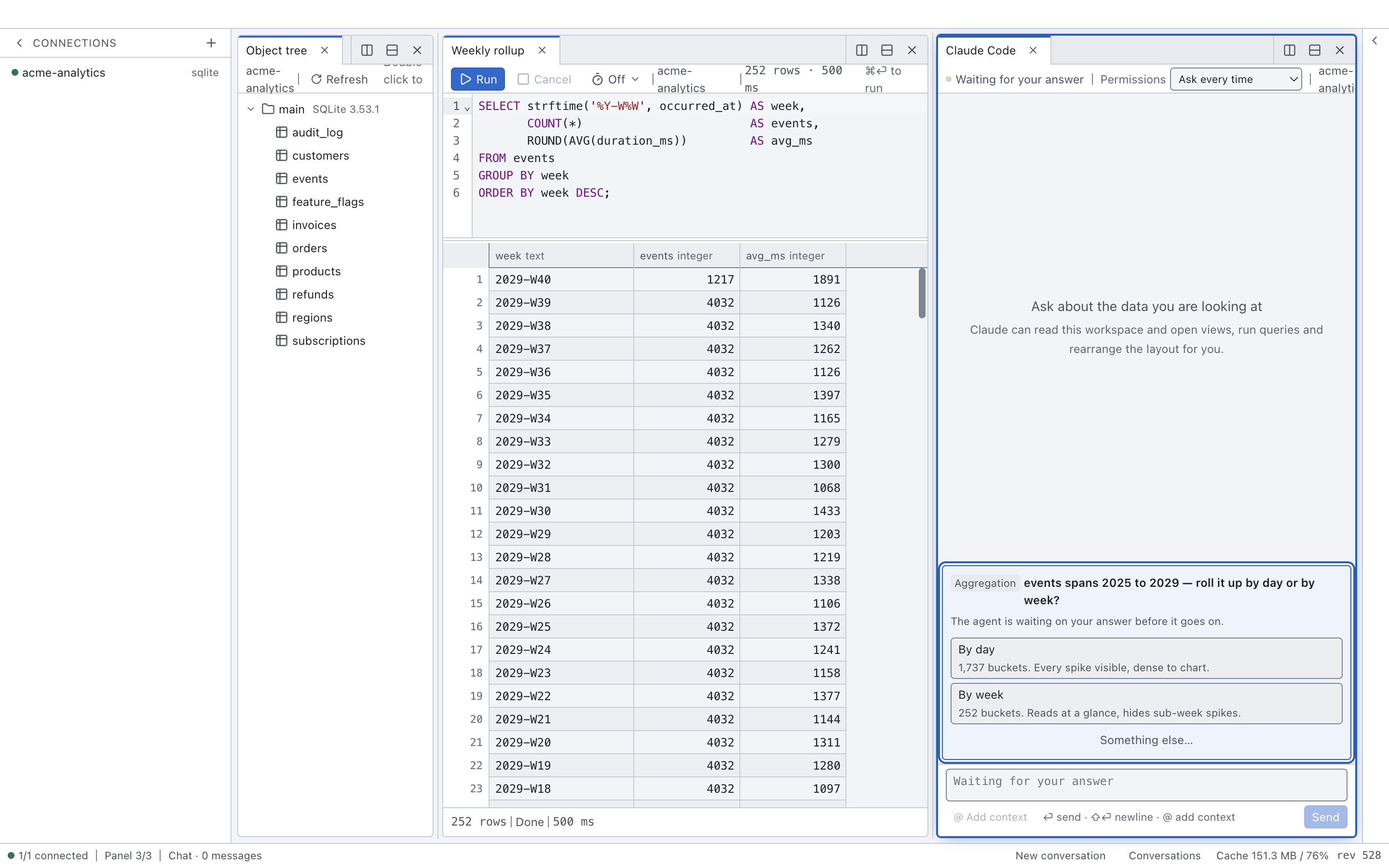

_{An ask call, suspended. The client that made it is screenshot.mjs — the tool call is really waiting, and the shot ends by clicking one of the options, because chat.answer refuses source: 'agent': an agent answering its own question manufactures consent. No agent backend runs here, so this needs no API key and reproduces on a fresh clone.}

peek starts its MCP server on launch, binds the loopback address only, and writes the endpoint plus a bearer token to ~/.peek/mcp.json (file 0600, directory 0700). The token is reused across restarts, so a client registered once stays registered.

cat ~/.peek/mcp.json        # the "hint" field is the exact command below, token filled in

claude mcp add peek --transport http http://127.0.0.1:7332/mcp \
  --header "Authorization: Bearer <token from ~/.peek/mcp.json>"

The same command is one click away in the app: Settings → MCP endpoint (the gear in the sidebar) shows the status, the address and the token — masked by default — and copies the registration line for you. It is also where the port is changed and the token rotated; both warn that an already registered client has to be re-registered, because both invalidate it.

The token is deliberately not printed to the log. It grants full control of the window and of every database connection open in it, and stdout is not a private place: terminal scrollback, CI logs and crash reports all carry it onward. The two places that hold the copyable command are the ones that are actually access controlled — the 0600 file and the settings panel.

The Authorization header is required — without it every request is rejected with 401. Requests are additionally checked for a loopback Host and Origin (DNS-rebinding protection), and the token is compared in constant time.

If port 7332 is busy, peek tries the next eight and tells you where it landed rather than starting without an MCP server; the port it settled on is what ~/.peek/mcp.json records. A port chosen in the settings panel is remembered in ~/.peek/settings.json. PEEK_MCP_PORT still overrides both, but only for that run — an integration knob, not a preference, so a scripted launch never rewrites what the user chose.

On first launch — no connection, and nothing in the connection book — the window shows a three-step guide instead of an empty grid: connect a database, copy the MCP registration command, open the chat panel.

The sixteen tools

There is deliberately no tool that hands a full result set to the model. Layout changes go through the same Command Bus as the human's keyboard and mouse, so read_workspace always shows an AI the panel arrangement a human just dragged into place, and vice versa.

The chat panel

You do not have to bring your own client. peek can host Claude Code itself, as a tab:

  chat view (renderer)
        │  chat.send / chat.cancel / chat.respondPermission  — ordinary Commands
        ▼
  Command Bus ──► ACP client (main) ──► claude-agent-acp (child process)
                                              │
                                              └── MCP ──► peek's own server on 127.0.0.1:7332

The agent is a child process speaking the Agent Client Protocol, launched lazily the first time a chat view is used, and handed peek's own MCP endpoint on the way up. So it closes the loop: the model you are talking to in the panel drives the panels around it through exactly the tools above, and the transcript is state like any other — read_chat and control_chat let a second, external client watch and steer the embedded one.

Two rules the panel does not bend:

• Rows are attachments, never ambient context. The agent sees result data only when a human stages it — a cell, a row selection, or a whole view — and each attachment is a descriptor resolved under a size budget at send time, not a blob pasted into the prompt.
• Permissions are answered by the human. A tool call the agent is not pre-authorized for renders as a prompt in the panel and blocks until someone answers it.

Packages and trust

Every database peek can open is a directory under ~/.peek/packages/<id>/: a peek-package.json manifest, a driver.mjs the connection process imports, a contrib.mjs holding the MCP tools and view kinds a package contributes, and an optional ui/ for a view it draws itself. The six databases under What works today are exactly that — copied out of the app bundle into that directory the first time peek starts, loaded through the same code path as anything else there, and removable from the settings panel like anything else there.

peek checks the shape of a package, never its contents. The loader refuses a manifest with a malformed id, missing English copy, a view kind that does not say how it fetches, or a tool without a description or an object schema — and it names what is wrong rather than skipping the package quietly. That is the whole of it. There is no signature check, no hash check, no permissions manifest, no sandbox around the driver, and no confirmation dialog at install time.

So the boundary is a trust boundary, not a technical one: what you install is what you trust, the same deal a VS Code extension or an MCP server offers. Concretely, at the moment a connection opens:

• driver.mjs runs in a driver-host child process — one per connection — with full Node and your own privileges. It is handed the connection config as you typed it, password included, because connecting is its job. Its environment is an allowlist (PATH, HOME, TMPDIR, LANG, TZ and a Windows block), not your shell's: AWS_*, GITHUB_TOKEN, npm_config_* and a proxy URL with credentials in it are not passed on.
• contrib.mjs runs in a package host utilityProcess, one per package, started on first use and not before. It is not given safeStorage — that is a main-process API, which is why the last bullet below is the one holding this up — and no credential-shaped variable is in its environment. A package cannot ask peek to decrypt the passwords of connections it does not serve.
• ui/ runs in an iframe on peek-package://<id>, which is its own origin with its own storage, under a CSP whose connect-src is 'none'. It cannot reach the network and cannot compose a statement: the only thing it may put on its one MessagePort is a bounded state patch.
• The main process runs no package code at all. That is why the second bullet is true.

None of that is a sandbox, and describing it as one would be the lie worth avoiding here. A driver host is an ordinary Node process: it can read your files, open sockets and start programs. The split bounds what a mistake reaches; it does not stop a package that means harm.

Two consequences are worth stating outright, because both used to be handled for you:

• Masking a password in the UI is now the package's job. Which config fields are secret is a redact block in the manifest, and peek applies it everywhere a config is shown — list_connections and read_workspace, the sidebar, the command log. A package that declares no redact block loads anyway and raises a warning in the error panel; until it declares one, its config travels to MCP clients and to the window verbatim, password field and all. (An explicit {} is a different statement — SQLite saying it holds no secret — and is not warned about.) This used to be an exhaustive switch in packages/core that could not compile with a database missing from it; a closed set of databases is precisely what packages ended.
• There is no kill switch. peek has no registry, no update channel and no revocation list, so nobody — including this project — can withdraw a package that turns out to be hostile from the machines it is already on. Vendors of comparable tools lean on centralized distribution for that backstop. peek's answer is local and manual: uninstall it. That closes the connections, kills the package's host process and deletes the directory; what the package wrote elsewhere while it ran is outside anything that button can speak for.

The chat panel makes the same deal, behind two switches

Out of the box the embedded agent has no file tools, no shell, and sees peek's own MCP server and nothing else — settings.json, CLAUDE.md and any MCP servers configured on this machine are not inherited, and scripts/verify-chat-security.mjs runs a probe against the real agent to check it. Settings → Agent has two switches that trade parts of that away. Both are off by default, both say what they cost next to themselves, and neither shows a confirmation dialog — for the same reason installing a package does not.

• File and command tools. Turns the agent's own Read, Write, Edit and Bash back on, and lets you point it at a working directory of your choosing. This gives up more than a tool list: peek's guarantee that the panel cannot approve its own permission prompts rested on the agent having no way to read a file, because the bearer token that carries full control of the window sits in ~/.peek/mcp.json in the clear. An agent that can read that file can present that token, and a permission prompt becomes a notification rather than a barrier. There is no partial version of this — one Read is the whole chain — so peek offers the switch rather than a per-tool illusion, and the settings panel says exactly this when it is on. Note also that Bash reaches your databases directly, outside the read-only transaction peek's own drivers open — that guarantee only covers statements that travel through peek.
• Your own MCP servers. Adds servers you list to the panel alongside peek's own. Their tool calls still go through peek's permission prompt; what happens after you approve one is between the agent and that server, and peek can neither see it nor account for it. In particular a database MCP server of your own is not bound by the read-only path either — that is something peek's own drivers do, and it never reaches anybody else's code. Credentials you enter here are encrypted by the OS keychain like every other secret peek stores, and are redacted from error messages and logs.

Conversations started before you flip either switch are unaffected — a conversation is fixed to the capabilities it was created with.

Performance

Two benchmark scripts produce every number below. They launch the built app on a throwaway port, user-data directory and config directory, so an installed peek neither blocks them nor is disturbed by them:

pnpm --filter @peek/desktop build

node apps/desktop/scripts/bench-startup.mjs   # cold/warm launch, plus bundle sizes
node apps/desktop/scripts/bench-scroll.mjs    # run_query + frame timing + DOM node count

bench-startup.mjs injects a timing probe into the main process with NODE_OPTIONS=--import, so the app's own source carries no instrumentation. bench-scroll.mjs generates its own SQLite fixture (no database server required), drives the app over its own MCP endpoint the way an AI client would, then attaches over CDP to scroll the grid and sample it. Both take --json.

Measured on an Apple M2 Max (64GB, macOS 26.1, Retina at devicePixelRatio 2, 120Hz), Electron 43.2, against the generated 1,000,000-row SQLite fixture:

Three of those need reading carefully:

• Frame interval is not a speed. rAF-to-rAF wall time is vsync-bound, so its median is the refresh period by construction. What the benchmark reports instead is droppedFrames — intervals past 1.5 refresh periods — and scrollWork, the part the application actually controls.
• The DOM node count is the virtual-scrolling claim, stated as a measurement. It is bounded by the viewport and not by the result set: five times the rows produced no increase at all — in fact slightly fewer elements, because the two runs happened to render 41 and 44 rows respectively. The range within one run is the overscan window growing and shrinking at the ends of the scroll.
• "End to end" assumes a reader who keeps scrolling. Backpressure holds the stream as soon as the delivered rows run far enough ahead of the viewport, so a benchmark that never scrolls measures the pause timeout rather than the query — the first draft of this script reported "60,483ms, 207,000 rows" for exactly that reason. The number above is with the viewport being driven to the end, which is what clears the row-count gate.

Why the virtual scrolling is hand-written

Chromium clamps the layout height of a single element to roughly 2^25 device pixels divided by devicePixelRatio — 33,554,248px at dpr 1, but 16,777,214px at dpr 2 on any Retina display. At a 24px row that ceiling lands at about 699,000 rows. A spacer element sized rowCount × rowHeight is silently clamped there: rows past it are not slow, they are unreachable. The cap is not even a constant, so hardcoding a safe value only moves the failure to the next external monitor or zoom level.

peek's answer is that no DOM dimension is derived from the row count. The vertical offset is a plain JavaScript number in virtual pixels; rows are positioned against a block origin that only moves every 4096 rows, which keeps every pixel value that reaches the compositor under 100k (safely inside float32 precision) and lets React's memoization bail out on ~99.98% of rows. The horizontal axis stays native scrolling. The vertical scrollbar is drawn by hand, because with overflow-y: hidden there is no native one to have.

What works today

Known limitations

• A large query pauses if you do not scroll. With backpressure active, a 1,000,000-row query stops at roughly 200,000 rows and reports paused — measured at 207,000 by bench-scroll.mjs before it learned to drive the viewport. This is the design working: loaded rows are valid, scrolling forward resumes the stream, and re-running the query restarts it. It is not an error state, but it does surprise people who expect a progress bar to reach the end on its own.
• LRU-evicted chunks cannot be re-fetched in place. Scroll far away in a result set larger than the ~200MB cache and back again, and the rows that were dropped are gone. The view now says so — the evicted range raises a notice with a button that re-runs the query — but it cannot quietly refill the hole, and that is a protocol limit rather than a missing feature: the rows came off a cursor that has since been closed, and cursorToken addresses the next page of a scan, not a position inside a finished result. A free-form query has no cursor at all. "Re-fetch rows n..m" is not a request any driver can currently be asked.
• Only the execution budgets are settable. Settings → Timeouts exposes the three deadlines anybody holds an opinion about — query, scan and vector search — and writes them to settings.json like the MCP port. The nine protocol timeouts behind them (spawn→ready, the connect RPC, the cancel RPC) have no form on purpose: they are the app protecting itself from a wedged driver process, not a preference anyone holds, and a tunable cancelMs can only make peek worse at noticing a dead one. MCP callers can still pass timeoutMs per call.
• Read-only is enforced per statement, not per account. On MySQL every checkout begins ROLLBACK; SET SESSION TRANSACTION READ ONLY, which closes every escape a client can type — START TRANSACTION READ WRITE, BEGIN, flipping the session variable back, autocommit=0, and XA were each tried against a real server, and only the first ever worked. What it cannot close is a stored procedure that already exists in the database and opens its own read-write transaction internally: CALL is a read-shaped statement, and the write happens on the server's side of the boundary. Closing that needs a MySQL account without write privileges, which is the right way to run peek against anything you care about.
• A qdrant table view cannot be sorted from a column header. The driver orders a scroll by indexed payload keys, and it reports which ones. That per-collection answer reaches MCP callers, who can still order a view with view.update, but it does not reach the renderer: ViewSummary carries only the kind-level style, and a table view of a vector collection draws the fixed default projection (id, payload), neither of which is ever an index key. So the headers are inert rather than offering a sort that would be BAD_REQUEST on every collection. Making them live needs a sortableColumns allowlist carried from describeCollection through the view state, and a grid that can make headers inert one at a time.
• Row height is fixed at 24px. Variable-height rows are not supported, and neither is wrapping a tall cell in place; large values open in a modal instead.
• Accessibility stops at the panel body. The layout has real semantics — panels are labelled groups, tab strips are ARIA tablists with roving tabindex, DOM focus tracks the focused panel, and layout changes are announced. Inside a panel none of that is true yet: the hand-drawn scrollbar has no native semantics, keyboard navigation within the grid is minimal, and dividers cannot be resized from the keyboard. The semantics are asserted by unit tests but have not been verified against a real screen reader.
• VectorViewState.queryText is inert. Drivers are forbidden from embedding, and nothing else in peek turns text into a vector, so the field can be set but never consumed. Vector search is driven by "more like this point" (queryPointId), which is the only entry point a human can operate.
• A restored desk comes back empty until its connections are up. The layout, the tabs and the text in a query editor are saved and restored; the rows are not. Restoring opens the connections without waiting for them, so every view starts idle and fills in when its connection reports ready — and a query view never re-runs itself, because restoring a desk must not execute the statement somebody left in an editor. Result sets are memory-only by design and always will be.
• cursorToken values do not survive a version change. The token now names the driver that minted it (postgres:0:400), so a stale one — from an older build, or from another connection — is refused rather than replayed against the wrong store. That is the intended trade, and it is why workspace.json stores ViewOpenSpecs rather than view state: a spec has no field a cursor could live in, so a restored view starts its scan from the top instead of replaying a dead token.
• Stored credentials are only as private as your user account. Passwords are encrypted by the OS keychain and never written in the clear, which protects a connections.json that leaks somewhere else — a backup, a sync folder, another account on the same machine, a file pasted into an issue. It does not protect against code already running as you, and a hardened runtime would not change that: --options runtime was measured against this build and AMFI does not honour it without a trusted signing identity, so DYLD_INSERT_LIBRARIES still loads into peek, and the keychain ACL — which checks the main binary's cdhash, left untouched by an injected dylib — waves the injected code through as peek. Nothing detects an edited out/main/index.js either (asar: false, so neither integrity fuse applies). Closing this needs Developer ID signing, which arrives with the first published binary; the measurement is in docs/design/2026-08-15-hardened-runtime.md.

Roadmap

Status: early. M0 (skeleton), M1 (PostgreSQL read-only pipeline), M2 (tiled layout: view drag-and-drop plus the set_layout / move_view tools), M3 (Redis), M4 (Qdrant), M5 (MySQL / SQLite), M6 (cancel and timeouts, error panel, connection persistence, a settable MCP port, and the capability-model gaps closed), M7 (chat session management) and M8 (database packages loaded from disk, plus an Electron hardening pass) are complete, and the layout has since grown panel tabs and keyboard accessibility. All six databases connect, introspect and stream rows, each from a package loaded off disk rather than compiled in (Packages and trust); all data access is read-only. peek has also grown a chat panel: Claude Code runs embedded over ACP as a sixth kind of view, connected back to peek's own MCP server, so the agent you are talking to drives the window it is sitting in. Everything below that is not marked complete is a plan, not a feature.

Of the work M6 left behind: the timeout settings have a form and a home in settings.json, and layout and open views now persist (workspace.json, design 2026-08-15). What remains is a self-provisioning PostgreSQL fixture, described under Quick start.

M3 (Redis), M4 (Qdrant) and M5 (MySQL / SQLite) were the test of the capability model, and it held: packages/core did not change to accommodate a key-value store or a vector database. What the exercise surfaced is that several of core's implicit assumptions were relational — a global sort order, an exact limit, a filterable field being a result column, one JS type per logical type. M6 turned each of those into something a driver states rather than something core assumes; what remains genuinely unsolved is listed under Known limitations.

Deferred on purpose and tracked in the plan: write operations (the read-only path stabilizes first, then a confirmation mechanism), spilling huge result sets to disk, and an Arrow binary channel (the chunk format is already columnar to leave room for it).

Repository layout

peek/
├─ packages/
│  ├─ core/               # Command schemas, workspace types, capability + chunk protocol,
│  │                      # errors, and the driver-host runtime every driver shares
│  ├─ db-postgres/    # introspect · tabularQuery · collectionScan · valuePeek · cancel
│  ├─ db-redis/       # introspect · collectionScan · keyValue · valuePeek · cancel
│  ├─ db-qdrant/      # introspect · collectionScan · vectorSearch · valuePeek
│  ├─ db-sql/         # MySQL + SQLite behind one dialect layer; same set as postgres
│  └─ db-neo4j/       # same set as postgres over Cypher, plus the `graph` view kind
├─ apps/desktop/          # electron-vite: main / preload / renderer
│  ├─ scripts/           # smoke-drivers.mjs, verify-chat-security.mjs, the two bench-*.mjs,
│  │                      # macOS packaging
│  └─ src/
│     ├─ main/            # Command Bus, workspace store, connection manager, MCP server,
│     │                   # driver host, and the ACP client that hosts Claude Code
│     ├─ preload/         # one narrow bridge: invoke / onPatch / onResultPort
│     └─ renderer/        # React UI, mirror store, result cache, virtual scrolling, chat, i18n
└─ docs/PLAN.md           # design record (English; PLAN.zh-CN.md is the Chinese original)

docs/PLAN.md is the authoritative design document — architecture decisions, the performance budget this README reports against, and the milestone definitions. It was originally written in Chinese; that original is preserved verbatim as docs/PLAN.zh-CN.md, and the two are kept in sync. The per-change design records under docs/design/ are Chinese for everything dated before 2026-08-24 and English from that date on — see CLAUDE.md.

License

MIT. See LICENSE.
