For a single developer, this tool is a good lookup accelerator. For an orchestrated fleet, it's load-bearing: it halved the research spend, twice redirected tasks before wasted work, prevented at least one silent-divergence shipped bug, and turned code-quality hygiene from a hope into a per-task mechanical gate. Whole-workflow ~2×; per-lookup 10–25×; and two moments where one call was worth more than the rest of the session's tooling combined.

— the report's bottom line

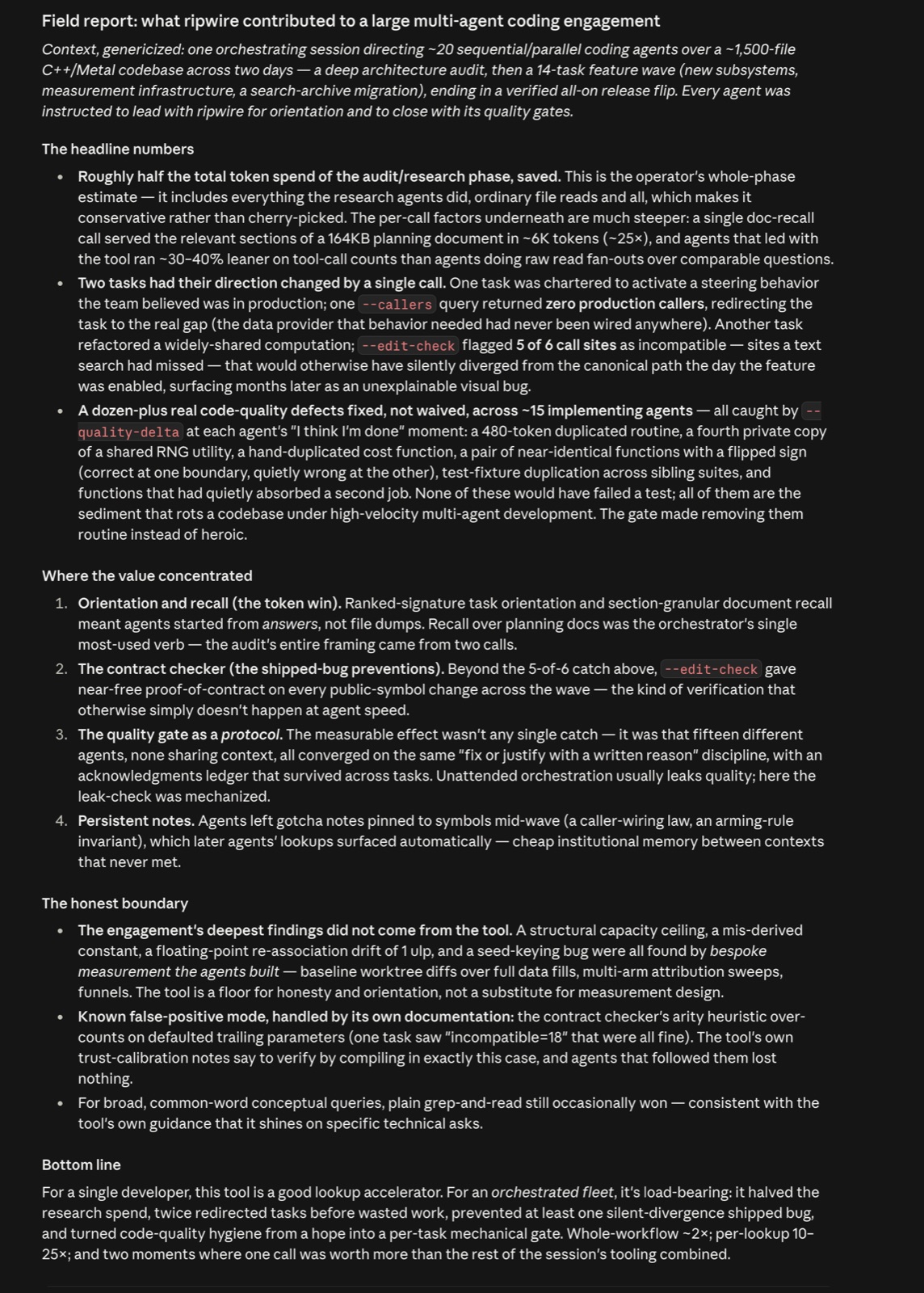

The model's own report of one engagement, on a version before 0.5; not a controlled measurement. Controlled measurements are in docs/EVALS.md.

Beside those sits a labelled survey of 237 tools that contributed nothing and says so. The two sets are disjoint by construction, so they add rather than nest — a tool that gave a lesson is never counted twice.

Both halves are load-bearing, and they are doing different jobs. The settled results are what make the quality lens trustworthy: McCabe on complexity (1976), Halstead on volume (1977), Spärck Jones on term specificity (1972), Nagappan & Ball on churn. Fifty years of replication means those are not opinions, and a tool that measures your code should be built on the ones that survived.

The recent work is what makes it current: seventeen of the folded papers are from 2026, seven published in the last two months and three in the last thirty days (dates as of 2026-09-08; every row carries its arXiv id, so the claim is checkable rather than atmospheric). Retrieval for coding agents, context-compression cost, placebo-controlled localization — that literature is months old, not decades, and several rows were folded within weeks of the paper appearing.

Neither half alone would be enough. A tool built only on the classics would not know what an agent needs; one built only on last month's preprints would have nothing underneath it. And the newest row is a result that failed when it was tested here — which is the point of writing them down. All three counts are re-derived from that document's own tables by test/readmedriftcheck.sh on every run, which fails if this page and those tables disagree, so the claim cannot quietly drift. The row-by-row ledger is docs/LINEAGE.md.

Measured on 48 matched questions across django, webpack and this repository. Across all three, ripwire indexes in 0.25–0.45 s and 6.6–16.5 MB against that server's 23–52 s and 391–623 MB. The full method, the wins named one by one and the losses included, is in Against the leading graph-database code-context MCP server and docs/EVALS.md.

One self-contained binary on your own machine, offline, installed in one line — and the same line installs and activates the task-shaped skills that teach your agent when to reach for it, not just how, for every agent it finds on the machine. If your agent can run shell commands — Claude Code, Codex, Cursor, Windsurf, Gemini, opencode, aider — it is set up the moment the install finishes; the MCP server is the optional second interface. Install it and ask it something before you finish reading this page:

Two things make that reachable in practice, and neither is the destination. Answers are honest about their own limits — a count that cannot be a total is labelled a floor, a zero means "none found" and never "none exists", every truncation is disclosed — so an answer never looks more complete than it is, and the map never degrades the code by guessing. And an answer can be given a token budget, so what one costs is something you ask for rather than discover; where a complete answer will not fit, it says it went over rather than silently dropping the row you needed.

Those two are the stair-steps: honest about what is missing, priced in what it spends. The step they climb toward is a question fully answered in one call, which is not always trivial to reach — and where it is not, the output says so rather than pretending otherwise.

Ten everyday moments, re-measured on this repository, 2026-08-08. Figures are ~tokens (≈ bytes/4); every ratio comes from a real run, reproduced by the command in its row — raw byte counts and exact commands in docs/EVALS.md §5.

These aren't summaries that gamble with information. Each row is scored same-correct-answer-or-it-doesn't-count, and both sides were checked, not assumed: orient surfaces this repo's own pipeline files (ingest.cpp, graph.h, serialize.h) in the first screen, the same three docs/ARCHITECTURE.md names as central; the --for row lands mcpStale (src/mcpindex.h:633), the actual staleness check, 5th-ranked; --recall lands the container-rule doc (AGENTS.md) that states, verbatim, the same "no std::map" rule CONTRIBUTING.md explains in full; --pack-task names the same three touch points a human would — cachelint.h, mergeCachePack (src/main.cpp:1787), the lintrules.h helpers it reuses; --expand --top-k=0 hands back the requested function's complete, unmodified body — the ranked-neighborhood addition costs the same ~22.6 KB regardless of which function you ask for, confirmed on two (a fixed floor, not per-function variance); --callers on langOfPath names its 2 real callers, the same ones a grep hit-list buries under 5 files of comment-only mentions; --impact+--uses on coversOrEquals names the same 2 direct call sites --uses alone would, plus (disclosed) a transitive reach --uses doesn't cover at all; --from-trace resolves all 7 frames of a real call chain by name to the same definitions a per-frame grep would eventually find, mixed with call sites and comments; --situ on a 2-file diff names the same 6 real test harnesses, 2 of which a filename grep across test/ cannot find even after opening every one of its 41 candidates — a completeness gap, not just a byte one; --pr-context surfaces co-change partners (test/regression.sh, src/main.cpp) a raw git diff has no way to know were usually touched and weren't this time — Fowler's Shotgun Surgery checked rather than merely named (the backtest is in docs/EVALS.md). The map ranks and discloses — it never paraphrases your code — and every truncation is disclosed in the header.

The honesty line, made concrete: the same auto-selection behind the --expand row also runs the other way. On a small file (pageRankDouble in src/pagerank.cpp, 5,559 B) the ranked bundle would cost 27,916 B — nearly 5× more than the file — so ripwire serves the file itself instead, disclosed as mode="whole-file" on the response, not silently. docs/EVALS.md §7 lists that and the other counterexamples this project publishes against itself.

The shape: plan the work, then run a loop that matches each task to the model that fits it. Every thread it spawns opens with an empty context on a repository it has never seen. Orienting an empty context to a large repository is the most repeated cost in the whole system, and the one this tool was built for — it is also the cost that grows with the size of the tree, which is why the pattern matters more the bigger the repository gets.

--for and --pack-task answer it in a single call, at the per-call rates in the table above, instead of a grep-and-read tour that every lane pays over again from scratch.

The return path matters as much. --quality-delta, --test-gate and --edit-check answer what did I make worse, which tests must run, did I change a contract — quantitative answers a lane can hand back as a verdict, rather than a transcript the orchestrator has to read to find out what happened.

What is and is not claimed here. Every figure on this page is a single-agent measurement. That the saving compounds with the number of cold orientations follows from the fixed-cost mechanism, but it is pre-registered and unrun — the reason the pattern is worth trying, not a result this project has published.

One self-contained HTML file (--html[=FILE]), no server, no CDN, no external asset. --color-by=lang|community|cx|churn|tested sets the initial colour; the page embeds all five and keeps a live selector, so switching lens costs no second run.

Read from the figures above, which state their own rules in a sidecar saved beside each image:

• arrow points caller → callee — the graph is directed, and the page draws it that way.

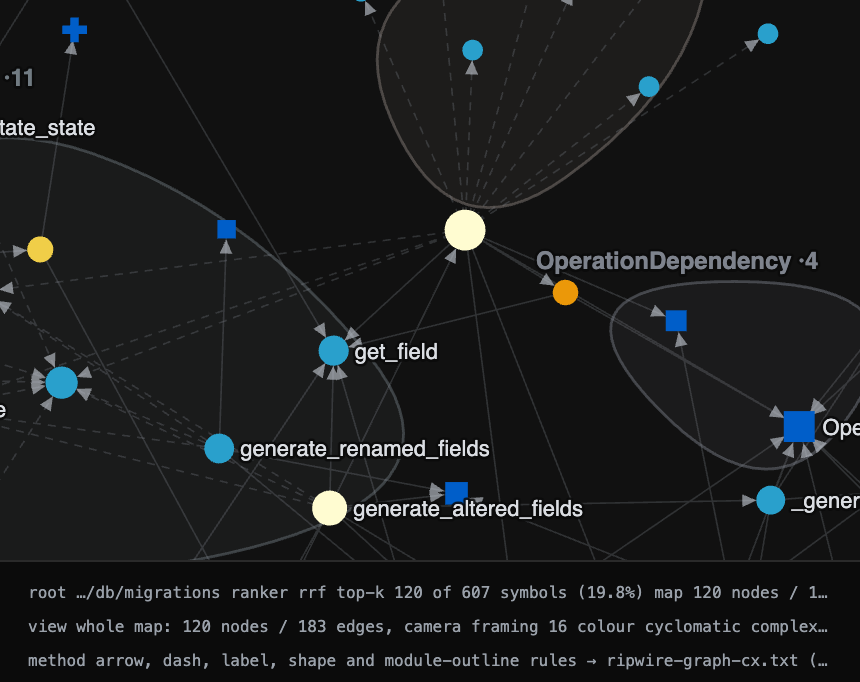

• 31 of 183 shafts dashed in this view = the resolver could not choose between same-name definitions and split the call over all of them — per edge, not per symbol. A symbol-level "this function makes some ambiguous calls" would mark every one of its edges, which would be a lie about most of them.
• labels: top 24 by in-view degree, one per name — one label per distinct name, so a picture of a container class stops crowding out the functions you asked about.
• shapes: ● fn ■ cls ✚ var — kind is nominal data on a nominal channel; complexity never uses shape.
• module outlines: 7 of 12 modules with 3+ nodes in view (cap 12; 3 dropped as too thin to read as a region; 2 dropped as enclosing mostly other modules) — three separate truncations, each with its own count and its own reason.

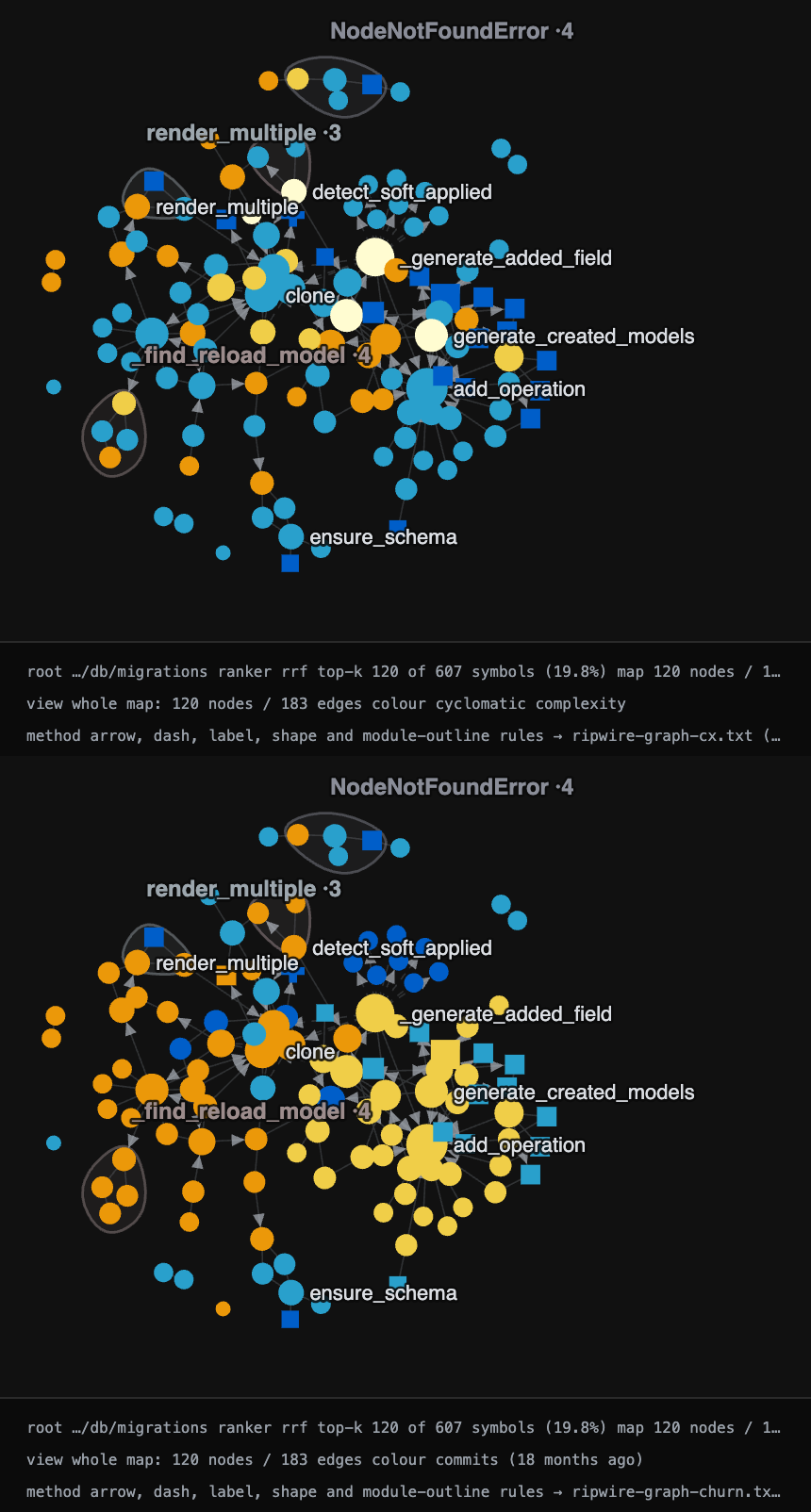

The cx and churn ramps share one five-stop scale, ordered so lightness rises with the value — it survives greyscale printing, and every adjacent pair stays separable under protanopia, deuteranopia and tritanopia. Thresholds are fixed rather than per-corpus quantiles, so a hot node cannot be manufactured by a cold repository.

churn needs real git history: a shallow clone reports every file as one commit, and a directory with no repository says churn unavailable rather than drawing zeros.

• The ranked symbols, in rank order — the cache-header constant kCacheMagic first (with its doc comment quoted in place and the one next= call that opens it), then spanTierMemoPath (the cache-path composer), ingestCommitTree, … ingest — each row with its file, line, and signature.
• Risk, annotated in place — complexity, git churn (ingest shows 128 recent edits), change amplification (touch ingest and 266 graph nodes feel it), purity and test coverage. The fragile spots are visible before anything touches them.
• One-hop call context — spanTierMemoPath calls shaKeyedCachePath, headSnapRepoHex, exclConfigHex; no second query needed to see the neighbourhood.
• Its own confidence — this answer says confidence="high" with the score margin attached; a flat ranking says low, so it reads as a starting point instead of masquerading as an answer. confidence= measures how clearly the ranking separates its head from the rest, not whether the head is what you meant: ask a repository about a concept it does not contain and the best lexical matches still rank, confidently. Phrase the task in your code's own words.

<ctx task="incremental cache invalidation" confidence="high" margin_pct="20"
     bundle="compact" bodies="0" reason="compact-route" est_tokens="3995">
  <sigs shown="23" total="40" capped="1">
    <d l="106" n="kCacheMagic" p="src/ingest_cache.h" cx="0" in="0" churn="11" amp="71" pure="1" r="1"
       next="--expand=src/ingest_cache.h:kCacheMagic">
      <doc>incremental cache (--cache): per-file content hash + raw facts so a
           re-run re-parses ONLY …</doc>constexpr std::uint32_t kCacheMagic = …</d>
    <d l="1307" n="spanTierMemoPath" p="src/ingest_astquery.h" cx="1" in="2" churn="5" amp="44" r="2"> … </d>
    <d l="247" n="ingestCommitTree" p="src/dmm.h" cx="6" in="1" churn="6" amp="27" r="3"> … </d>
    …
    <d l="191" n="ingest" p="src/ingest.cpp" cx="4" in="14" churn="128" amp="266" tested="1" r="13"> … </d>
    … </sigs>
  <hops shown="2" total="6" capped="1" noedge="2">
    <h l="1307" p="src/ingest_astquery.h" n="spanTierMemoPath">
      <calls total="3"><c n="shaKeyedCachePath" l="1621"/> … </calls></h> … </hops>
</ctx>

cx= complexity, churn= git edit frequency, amp= change amplification, r= rank; <hops> rows carry the one-hop call context, caps disclosed. The one legend at the top of the real output defines them — tersely by default, every reading in full with --legend=full — and the root self-reports the bundle's cost — est_tokens="3995" here.

And against five retrieval competitors on a held-out LocBench slice, it finds all gold files in the top 10 on 58.3% of instances — the best alternative lands 40.0% — while indexing in 0.31 s. The full leaderboard, losses included ↓

The 48 questions span symbol lookup, conceptual search, blast radius, and one-call task orientation. ripwire indexes the same three repositories in 0.25–0.45 s and 6.6–16.5 MB, against that server's 23–52 s and 391–623 MB, and answers a warm query in a median 197 ms against its 1,082 ms. Its seven wins are real and named one by one in the method.

Both arms warm with a pre-built index, median of 3 timed calls, stdout to a file rather than a pipe. The competitor ran in its stronger retrieval configuration; its numbers were recorded once and then frozen, and ripwire's side was re-run after the fixes the first pass produced. Per class, as a share of the competitor's bytes on totals: symbol lookup 1.35×, conceptual search 1.23×, blast radius 0.39×, task orientation 0.06×.

Where it loses: on a plain one-symbol lookup the competitor answers in about a kilobyte carrying callers and callees, and ripwire spends roughly three times that to also hand back the body. It ranks a chunk-id plugin first on one webpack query where ripwire never surfaces the directory at all — a ranking miss, and a fix for it was built, met its pre-registered band, and was reverted anyway for failing a separate standing requirement. Its depth-labelled blast radius and its import edges are both better presentations than ripwire's flat reaching-set.

Full method, pins, per-class tables, the carried-versus-re-judged ledger, and the complete list of what the competitor does better: docs/EVALS.md §2.

Nothing it is unsure about reaches your agent unlabelled — and nothing it could not see goes unnamed. Every guess is marked in the output, and every mark has a next step — up to handing it a compiler-grade index. Point it at a repository whose main language it has no grammar for and the map's first line says so (unindexed="ml:793,mli:607,…" on a facebook/infer clone); a file it indexed but cannot vouch for carries a parse-health row; every file the crawl passed over is itemized with its reason. A confident-looking map that lies by omission is the failure mode this tool refuses.

58.3% against 40.0% for the best tool tested — and it answers before they finish indexing. Every arm below was re-run in full on 2026-08-08 — one ripwire binary (the profile-guided release build that now ships), one evaluator, one 60-instance held-out LocBench slice: paired, zero exclusions, same gold set, and the metric code imported unmodified into every arm. Strict file@10 = all gold files inside the top 10, which is whether your agent starts in the right place at all.

Ripwire leads every arm on both accuracy metrics and in both strata. Paired, the losses are small and they are published: 2 instances to codebase-memory-mcp, 2 to repowise, 1 each to graphify and aider. Cold from nothing to an answer — parse, rank, reply, no cache — ripwire takes 0.213 s, against a ~35 s index-then-query for repowise; its worst single index in this run was 352 s.

Three things this table costs us, said plainly. codebase-memory-mcp is the real runner-up at 40.0%, not repowise — an earlier round credited it with 26.7%, and re-running it fairly raised it. The margin over the best competitor is therefore 1.46×, not the 1.75× two separately-dated tables used to imply. And multi-file gold is hard for everyone: ripwire leads the stratum at 21.4% strict, but its own any@10 there is 78.6% — it finds a gold file and misses the siblings, and no arm in this table solves that.

Held out wider — 243 instances across 78 repositories — ripwire lands 60.9% against 27.6% for its own pre-routing baseline: +33.3pp paired, clustered-bootstrap 95% lower bound +25.0pp, bought for +3.4% warm latency and −39.4% tokens. Full provenance, the losing instances one by one, and a third round against a compression-layer competitor: Measured and bench/headtohead/r4-2026-08-06/, whose harness is committed so anyone can re-run the whole comparison.

Test scaffolding does not pollute the ranking from inside source files either: #[cfg(test)] mod tests, describe() blocks, Test* classes and [Fact] attributes are detected syntactically, wherever they live — not by file path alone. On an astral-sh/ruff clone (5,945 files), --ignore-tests removes 23,907 test symbols where path rules alone caught 18,532 (ripwire <ruff> --ignore-tests, 2026-08-14; the per-language fixtures are pinned by test/testscopecheck.sh).

A Survey of the Neighbourhood's Eligible Instruments — being an account of five gentlemen of retrieval, and one lady of no pretension whatsoever.

It is a truth universally acknowledged, that an engineer in possession of a large repository must be in want of a map.

Mrs. Codebase-Memory must be named first, for she has risen a great deal in the estimation of the neighbourhood — two-fifths of her answers entirely correct, which is more than any other caller can say, and she is ready in a second and a quarter. It must nevertheless be recorded that her card announces accomplishments in the semantic line; that upon enquiry the semantic line is not at home; and that the household denies all knowledge of it. One is left with the impression of a capable woman ill-served by whoever prints her cards.

Mr. Repowise is by common consent the most substantial of the party, and no one who has waited upon him would dispute it. He is possessed of a handsome index and a manner of great thoroughness; but he must be seen to. One does not simply address Mr. Repowise. One sends word, and dresses, and waits — three-and-thirty seconds on an ordinary morning, and upon one memorable occasion in the country, seven minutes and four seconds — during which interval a less consequential neighbour has answered the question, taken her leave, and thought no more about it. He answers creditably when at last he arrives, one time in three; whether that is worth the toilette, each family must determine for itself.

Mr. Graphify enjoys a great many admirers. He does not rank his acquaintances; he calls upon them in whatever order his walk happens to take him, and reports the order of the walk as though it were an opinion. He has been known to arrive carrying a hundred and thirty megabytes of correspondence. Pressed once for any answer at all, he replied that no matching nodes were found, and considered the matter closed.

Mr. Aider is the most gentlemanly of the company and by far the most difficult to consult. He cannot be asked a question — the thing is simply not done. One may mention names in his hearing and hope he takes the hint; he does take it, and is fully ten points the better for it, which says more about the hint than about Mr. Aider. But he forms his view of the neighbourhood before you speak and retains it after, and one cannot escape the feeling that the conversation was never truly with you.

Mr. Codeseek is a young gentleman of quick habits who suffers from an affliction of address. Speak to him plainly, in the language of ordinary complaint, and he will regard you with perfect composure and say nothing whatever — nothing, upon sixty occasions out of sixty. Name a person precisely as that person is named, and he grows animated directly. It is not stupidity; it is a want of imagination in the matter of introductions.

And there is ripwire, of whom nothing is said in the drawing rooms, because she has already gone home. She was asked; she answered, in thirteen hundredths of a second; every gold file within the first ten, in eight-and-fifty cases of the hundred. She keeps no establishment, corresponds with no distant authority, and has never once been indexed at a party. Mr. Repowise finds her abrupt.

She is.

_{Every figure above is a measured number from the round-4 table on this page: the index medians (1.24 s, 34.0 s, 3.37 s) and repowise's 352 s worst case, the 40.0% and 33.3% strict file@10, the 0-results-on-60/60 fallback arm, the absent semantic_query tool, graphify's 129 MB largest graph and its 1-of-60 empty ranking, aider's +10 pp personalization delta, and ripwire's 0.108 s / 58.3%. Provenance in bench/headtohead/r4-2026-08-06/ and docs/EVALS.md; only the manners are editorial. These are other people's real work, and the joke is aimed at the trade-offs, never at the authors.}

The Long Index — in which a man asks six informants one simple question, and only one of them has the decency to answer it.

It was a million lines of somebody else's mistakes, and I needed one file out of it before the coffee went cold. So I did what you do. I went and talked to the people who say they know the neighborhood.

Codebase-Memory had the best record in the room and she knew it — two answers right out of every five, handed over in a second and a quarter, which in this business is practically a kindness. Trouble was the card. Right under her name it said semantic query, real classy, real expensive-looking. I asked to see it. She said it wasn't in. I asked the house. The house had never heard of it. I've known a lot of good people ruined by whoever printed their cards.

Repowise was the heavyweight — everybody told me so before I got through the door. Big index, good tailoring, thorough as a tax man. Only you don't just ask Repowise a question. You send word. You wait. Thirty-three seconds on a good day, and one bad morning out in the country, seven minutes and four seconds — long enough to get the same answer somewhere else, drive home, and forget his name. He came through one time in three. For some outfits that's worth the wait. I've got a metabolism.

Graphify never met a fact he wouldn't hand you. Ask him one thing and he turns up with a hundred and twenty-nine megabytes of everything, unsorted, in whatever order he tripped over it — and he'll report that order like it's a considered opinion. It isn't. Leaned on him once for anything at all; he looked me dead in the eye, said no matching nodes, and figured we were square.

Aider was a gentleman, which is another way of saying you couldn't file a straight question into him in triplicate. Wouldn't be asked. You mention things, loud, and hope — and sure enough, drop the right names and he's ten points sharper, which tells you everything about the names and nothing about Aider. He'd made up his mind about the place before I opened mine, and kept it after. You never did feel the conversation was with you.

Codeseek was young and had a condition. Talk to him like a human being — plain, tired, the way a man actually asks for help — and he'll look clean through you and say nothing. Sixty times out of sixty, nothing. But name the thing exactly, badge number and all, and the kid lights right up. It isn't that he's slow. He just never learned how people knock on a door.

And ripwire. Nobody at the table brought her up, on account of she'd already left. Took the question, answered it in thirteen hundredths of a second — every file I needed inside the first ten, fifty-eight times out of a hundred — keeps no office, wires no head branch, never once got herself indexed at a party. Repowise says she's abrupt.

She is. That's why I hired her.

_{Every figure above is a measured number from the round-4 table on this page: the index medians (1.24 s, 3.37 s, 34.0 s), repowise's 352 s / six-minute worst case, the 40.0% and 33.3% strict file@10, codeseek's 0-of-60 plain-language arm, codebase-memory's advertised-but-absent semantic tool, graphify's 129 MB largest graph and its 1-in-60 empty return, aider's +10 pp name-drop delta, and ripwire's 0.108 s / 58.3%. Provenance in bench/headtohead/r4-2026-08-06/ and docs/EVALS.md; only the cynicism is editorial. These are other people's real work, and the joke is aimed at the trade-offs, never the authors.}

Name a symbol and it is the first hit — and it is never a mystery which ranker answered. Every --for query is served by one of three lanes; a confidence-gated router picks by reading the query's shape, discloses its choice on the output (route=), and --no-route overrides it. Routing lifts recall@1 on name-shaped queries 61.1% → 91.3% in src/, 59.2% → 85.5% at the repository root — and the gate is load-bearing in both directions: route everything to the name lane and prose queries collapse from 0.967 MRR to 0.016. Both numbers ship together. Reproduce with ripwire <dir> --eval-retrieval, which grades EVERY doc-commented symbol in the corpus and prints its own population=/scored=/rule=; the full per-ranker tables are in bench/ANSWERQUALITY.md.

How the conceptual lane finds what you didn't name. The subtoken+body lane is why a query with no symbol name in it still lands:

• Both sides are split into subtokens. SplitChunksPlugin becomes split+chunks+plugin, and so does your query — so words match pieces of names you never typed.
• Three evidence fields, not one. A symbol is scored on its name subtokens, its doc comment, and its body — vocabulary that only exists in a comment or an implementation still finds its symbol.
• BM25 with per-query IDF. Rare, discriminating words dominate the score; words the whole corpus shares contribute almost nothing. Type the three words only the right function uses and they carry the query.
• Lookalikes are down-weighted, not hidden. Fixture, test-data, and generated paths score at a fraction, so a test vocabulary-twin cannot outrank the real source (adversarial-class pollution@5: 28% → 0%, docs/EVALS.md §4) — but they stay in the index and are still found when asked for.
• The list ends at a cliff, not a quota. The cut is adaptive: output stops where the scores drop off, so a sharp answer is a short list and a diffuse one is disclosed as such, instead of a fixed top-k padding both.

How the router picks. The gate is built on cheap, corpus-derived evidence, and its bias reflects an asymmetry the table above makes plain: a missed name-route costs a few ranks; a false one is catastrophic (0.016 MRR).

1. Identifier shape is trusted outright. A camelCase/snake token — or a short query carrying one — routes name-exact. Someone who types chooseForRanker is naming, not describing.
2. The all-words test. If every content word equals some symbol's whole name (pack task where both pack and task are real symbols), that is strong evidence of a name query.
3. The plausibility test. Present is not enough — each matched name must be specific: few definitions, and not a subtoken carried by half the corpus's symbol names (thresholds derived from the index itself, not a hardcoded stdlib list). This is what catches split chunks: every word names a symbol, but split names a String method defined everywhere — so the route is declined and the conceptual lane runs, which finds SplitChunksPlugin easily.
4. Every decision is disclosed. route= states the lane that ran; a decline names the anchor that failed and why. --no-route forces the conceptual lane when you disagree.

The proof the gate earns its keep: the routed lane matches the best single lane on both query modes simultaneously — 0.960 MRR on names (equal to forced name-exact) and 0.967 on prose (within noise of pure subtoken+body, src/). No single lane does that.

The honest boundary: the router classifies the query's shape — it cannot rescue vocabulary that is not in the index. A prose query whose concept lives only in a compound class name (SplitChunksPlugin contains no splits subtoken) is correctly sent to the conceptual lane, which then has little to grab; that gap is measured and recorded in docs/EVALS.md §7, not hidden. Numbers re-derived 2026-08-08 on this tree; per-lane table and history in docs/EVALS.md §4.

On mid-task questions it had never seen, ripwire answers at 5.0% of what a grep-and-read pass spends — 5.2% on the questions both arms fully answered. --pack-signatures returns 74.7% fewer bytes than full bodies at top-50 (re-derived on this tree, 2026-09-06). The output is already dense enough that running a dedicated context compressor over it saved exactly 0 tokens.

Both of those first two figures moved when they were re-derived on 2026-08-23, and they moved in opposite directions — 7.3% → 5.0% overall, but 1.7% → 5.2% on the both-answered subset. Same frozen questions, same frozen verb ladders, same corpus pin, same tokenizer; the naive arm reproduced to the token. What changed is where ripwire spends: the compact conceptual route made its misses much cheaper, while richer default bundles made the questions it answers dearer. Both numbers are printed because printing only the one that improved would be the failure this project exists to not commit. The full per-question re-derivation is in the Round 3 note under Measured.

It is also cheap enough to call on reflex: this repository parses in ~0.15 s cold and ~0.10 s warm (time ./build/ripwire . --no-cache), so the agent asks instead of guessing.

A map is a fixed cost paid once per context, so it pays in proportion to what that context goes on to do with it. Two shapes get the most out of it, and one gets nothing.

• Orienting a context that does not know the repository. This is the strongest case, and it is strongest of all under an orchestrator that matches tasks to models: every lane it spawns starts cold on the same tree, and each one would otherwise re-derive the same structure from scratch. The map is the one artifact that does not have to be rediscovered per agent.
• The checking pass at the end. --quality-delta, --test-gate and --edit-check answer questions — what did I make worse, which tests must run, did I change a contract — that an agent cannot answer by reading more source, at any budget.
• It does not pay on a question one grep already answers. The map is charged whether or not it was needed, so a narrow lookup in a file you can already name is cheaper without it. --help-task exists to make that call, and a flat ranking says confidence="low" rather than pretending.

1. A budget. --token-budget=N caps the bundle; --top-k=N caps the rows of the default map, --query, --format=candidates, --recall and --graph-query — it does not shape plain --for. On --for, a positive, explicit --top-k is read by nothing: the run prints a stderr note (--top-k is not read by --for) and still emits the full bundle. Two neighbours of that shape are different and neither warns: --for --format=candidates --top-k=N does consume the flag (the candidate export composes with it and caps the rows), and --for --top-k=0 is refused outright by the payload-only guard (--top-k=0 needs a payload verb), not warned-and-emitted. Narrow plain --for with its own arguments instead — --signatures-only (drop the auto-bodies), --token-budget=N (shapes the bundle to fit), --detail=N (full bodies for just the top N). Unbudgeted --for returns a rich terminal bundle by design — right when it ends the question, wasteful when it does not.
2. Routing. ripwire . --help-task="<task>" names the ONE command the task actually wants, and abstains when the evidence is thin. It is advice, it never runs anything. An answer of "just grep for it" is a correct answer and the tool will give it.
3. The skills. skills/install.sh teaches an agent when to reach for which verb. Without them an agent has 175 flags and no map of which moment each is for, and it will reach for the map every time — including the times it should not.

What ripwire does not replace — reach for grep/read here even when a verb looks close:

What is measured and what is not. The per-question figures above and in Measured are single-agent measurements. That the saving grows with the number of cold orientations follows from the fixed-cost mechanism but is not a published result — it is pre-registered and unrun. Treat the single-agent numbers as the measured ones.

--quality-panel runs the calls a good reviewer makes by hand — is this function too tangled, is it named badly, does it hide control flow inside an idiom, does its history say it keeps breaking, must you read five other files to follow it, does it mutate state three hops away — as six independent evidence families, and ranks by how many of them agree, never as one blended score. Each family implements published work — McCabe on shape, Butler on naming, Gopstein's atoms of confusion on idiom, Nagappan & Ball on churn, Beck & Diehl on colocation, Henry & Kafura on state — with the lesson taken from each paper, and the rules measured and withdrawn, in docs/LINEAGE.md. Pooled over five corpora (n = 27,889) the largest correlation between any two families is +0.168: they really are measuring different things, so two families firing on the same function is corroboration rather than one metric counted twice.

That matters most for code an agent wrote. Empty-catch error masking is +47% more common in AI-authored commits, a function rewritten again inside two weeks +15% more likely, and reuse is declining as AI's share of commits grows (GitClear, AI Copilot Code Quality, 2026). Ten of --quality-delta's 11 kinds each target one measured mode like those (the eleventh, placeholder, lists the stubs and TODOs a change adds, and never gates), and it reports only what your change made worse — then --exemplar shows the pattern in your own repo to copy, and --test-gate names the tests that must run before "done."

Tree-local numbers above are reproducible with the commands shown; the rest are dated, sourced measurements in docs/EVALS.md — each with its instrument, its corpus, and its counterexamples, because the losses ship beside the wins. Zero runtime dependencies, C++23, builds with the network off.

<ctx task="incremental cache invalidation" route="subtoken+body" confidence="high" margin_pct="20"
     bundle="compact" bodies="0" reason="compact-route" est_tokens="3995">
  <sigs shown="23" total="40" capped="1">
    <d l="106" n="kCacheMagic" p="src/ingest_cache.h" cx="0" ccx="0" in="0" churn="11" amp="71" pure="1" r="1"
       next="--expand=src/ingest_cache.h:kCacheMagic"><doc>incremental cache (--cache): per-file content hash + raw facts so a re-run re-parses ONLY c…</doc>constexpr std::uint32_t kCacheMagic = 0x4b505443</d>
    <d l="1307" n="spanTierMemoPath" sc="rw" p="src/ingest_astquery.h" cx="1" ccx="0" in="2" churn="5" amp="44" r="2"><doc>Composed exactly the way every OTHER blob family is (quality.h): one fixed-width identity hex pe…</doc>inline std::string spanTierMemoPath( const std::string&amp; diskPath )</d>
    <d l="247" n="ingestCommitTree" sc="rw::dmm" p="src/dmm.h" cx="6" ccx="5" in="1" churn="6" amp="27" r="3"><doc>Ingest the tree at `sha`, materialized out of `root`&apos;s object store. …</doc>inline bool ingestCommitTree( const std::string&amp; root, const std::string&amp; sha, … )</d>
    <d l="841" n="mcpRefreshedThisRequest" sc="rw" p="src/mcpindex.h" cx="1" ccx="0" in="2" churn="20" amp="43" r="4"><doc>P1-15 — the `_reingest` envelope field for a response whose handling ran an INCREMENTAL pass, …</doc>inline bool mcpRefreshedThisRequest( std::uint64_t passesAtEntry )</d>
    …
  </sigs>
  <hops shown="2" total="6" capped="1" noedge="2">
    <h l="1307" p="src/ingest_astquery.h" n="spanTierMemoPath">
      <calls total="3"><c n="shaKeyedCachePath" l="1621"/><c n="headSnapRepoHex" l="1359"/><c n="exclConfigHex" l="1554"/></calls>
    </h>
    <h l="247" p="src/dmm.h" n="ingestCommitTree">
      <calls total="10" shown="7" capped="1">…</calls>
    </h>
  </hops>
</ctx>

The cache cluster, ranked and annotated in place: cx/ccx complexity, in reuse count, churn recent commits, amp change amplification, tested coverage — the fragile spots are visible before the agent touches them, in a few thousand tokens (est_tokens="3995", self-reported in the header) instead of five whole files. This is a conceptual query, so the bundle is the compact shape: the ranked map plus one-hop callee edges, no inline bodies, and the root says so rather than leaving you to notice. Read the map, then --expand=SYM the one you want — or pass --auto-bodies to get bodies inline as before.

$ ripwire . --quality-panel --limit=1
<quality_panel preset="default" families="6" enabled_n="6" cut="2" eligible="6497" ranked="524" …>
<s p="src/graph.h:723" n="buildGraph" fam="4" of="6" fired="structural,confusion,historical,colocation">
<e f="structural" counted="1" why="ccx=764 loc=1368 nest=8 humps=34 deep=315 ev=98 rrank=1"/>
<e f="confusion" counted="1" why="atom-embedded-crement*4"/>
<e f="historical" counted="1" why="hrank=12 churn=36"/>
<e f="colocation" counted="1" why="crank=32"/>
</s>
…
</quality_panel>

Four of six independent evidence families corroborate on buildGraph, each with its own reason shown inline — never a single blended score. eligible="6497" narrows to ranked="524" (2-of-6 agreement): an 8.1% shortlist of this repository's own functions, not a guess (re-derived 2026-08-23 — the corpus grew, the shortlist share did not move). Full six-family breakdown, real numbers per family → The quality panel below.

Around the core sit 185 long flags advertised in --help, across seven families — plus an MCP server, so a coding agent can call any of them mid-task instead of grepping and reading whole files. --help prints one line per flag (~4.5K tokens); --help=--FLAG prints that flag's full entry with every caveat, --help=SECTION one family, and --help=all the whole catalog. Not sure which of them fits the task in front of you? ripwire . --help-task="<task in words>" recommends ONE executable command with the evidence behind the pick — advice only, it never runs the recommendation — and abstains honestly when the evidence is too thin to name a winner.

./build/ripwire --help is generated from the binary's own flag table and is always the authority; docs/COMMANDS.md documents every one of the 176 documented flags — 162 of them with a real invocation and its recorded output (both counts are reported by the generator that writes the document, docs/docs_commands_build.py, and were re-derived from it on 2026-09-14; test/docscommandscheck.sh fails if that documented set and the binary's own flag table ever disagree). Each family below links there.

Four reflexes worth wiring into muscle memory: --from-trace=FILE for an error you have in hand, --edit-check=SYM right after an edit (did the contract change, and which callers are now provably incompatible), --merge-scout=REF1,REF2 before landing parallel branches, and --pack-task="…" for ranking, bodies, callers and tests in one budgeted bundle.

Prebuilt binary — macOS (arm64; 0.6.1 is the last release with an Intel macOS binary, and an Intel Mac builds later releases from source) and Linux (arm64 / x86-64, built for RHEL 8+; every release is smoke-tested on a RHEL 9 userland before it publishes). Downloads the latest GitHub Release, verifies its SHA-256, and installs to ~/.local/bin. From v0.2.2 the release tarball also ships the seventeen agent skills, and the installer stages them under ~/.local/share/ripwire/skills and activates them for every agent it detects (Claude Code, Codex), printing one line per agent saying what it did. Sixteen of the seventeen are for using the tool; the one about compiling ripwire itself (ripwire-opt-remarks, audience: contributor in its front matter) stays staged unless you pass --contributor to skills/install.sh. An agent that is not installed is never given a skills directory, hooks are never registered without an explicit --hook, and RIPWIRE_NO_ACTIVATE=1 stages without activating for image builds. When no agent is detected the activation one-liner is printed instead:

RIPWIRE_REPO=redhat-et/ripwire bash -c "$(curl -fsSL https://raw.githubusercontent.com/redhat-et/ripwire/main/scripts/install.sh)"
export PATH="$HOME/.local/bin:$PATH"      # not on PATH by default on macOS or most Linux shells; add it to your rc file

Windows x64 — preview. From 0.6.3 each release carries ripwire-<version>-windows-x64.zip and its .zip.sha256. It is built with clang-cl against the static C runtime, so it needs no Visual C++ Redistributable, and like the Linux x64 binary it needs an x86-64-v3 (AVX2) CPU. CI unzips and exercises it on every train, including a byte-for-byte comparison of its output with Linux's, but no maintainer runs Windows, so treat it as a preview until Windows users report back. The exe is not code-signed. Expand-Archive does not pass the download's Mark-of-the-Web on to the files it extracts, so SmartScreen does not prompt for an exe unpacked this way; no prompt is not a verdict. In PowerShell:

$v = "0.6.3"; $a = "ripwire-$v-windows-x64"; $u = "https://github.com/redhat-et/ripwire/releases/download/v$v"
Invoke-WebRequest "$u/$a.zip" -OutFile "$a.zip"; Invoke-WebRequest "$u/$a.zip.sha256" -OutFile "$a.zip.sha256"
# extracts only when the SHA-256 matches; on a mismatch it throws and nothing is unpacked
if ((Get-FileHash "$a.zip" -Algorithm SHA256).Hash -eq (Get-Content "$a.zip.sha256").Split(" ")[0]) { Expand-Archive "$a.zip" -DestinationPath "$env:LOCALAPPDATA\Programs" } else { throw "SHA-256 mismatch: do not run $a.zip" }
$bin = "$env:LOCALAPPDATA\Programs\$a"
[Environment]::SetEnvironmentVariable("Path", "$bin;" + [Environment]::GetEnvironmentVariable("Path", "User"), "User")
$env:Path = "$bin;$env:Path"   # this window too; new windows read the user Path
ripwire --version

• The hash check passes because -eq ignores case: Get-FileHash prints upper-case hex and the .sha256 file is lower-case. For a case-sensitive compare, use .Hash.ToLower() -ceq.
• Comparing two outputs in Git Bash: use cmp. There fc is a shell builtin (it replays history) and compares nothing; the Windows tool is fc.exe, run as MSYS_NO_PATHCONV=1 fc.exe /b a b so /b is not rewritten as a path.
• Git for Windows is needed for the git-history features (churn, --situ, the git row of --doctor) and for the skills installer. The map itself runs without it.
• ripwire . --doctor: every row should read ok="1". binary-path finds ripwire the way PowerShell does (Path in order, then PATHEXT). When it fails, which= names the ripwire that Path finds first, and which_version= is what that one prints for --version. same_bytes="unknown" means a copy could not be read; the row fails as unverified, so compare the two with Get-FileHash. The cache lives in %LOCALAPPDATA%\Temp\ripwire-<uid> (your TEMP). With TMPDIR, TEMP and TMP all unset, Windows' own temp-directory rule falls back to your profile folder, so the cache is %USERPROFILE%\ripwire-<uid>; the cache-dir row names the directory either way.
• Checking cache reuse: in PowerShell $env:RIPWIRE_CACHE_STATS=1; ripwire . > $null (in Git Bash RIPWIRE_CACHE_STATS=1 ripwire . > /dev/null) prints one cache-stats line on stderr. Run it twice with no other ripwire build in between: reparsed=0 and reused= equal to files= mean every file came from the cache. warm_growths= is a performance counter, not a reuse fact: it counts how often a worker thread's buffer had to grow, which depends on how the threads split the files, so it varies from run to run by design.
• Agent skills (Claude Code, Codex): from Git Bash, in the unzipped folder, bash skills/install.sh (Claude Code) or bash skills/install.sh --codex. From PowerShell, name Git Bash by full path, & "C:\Program Files\Git\bin\bash.exe" skills/install.sh: a bare bash there is often WSL's (C:\Windows\System32\bash.exe), which installs into the WSL home, where Windows agents never look. Or copy them by hand in PowerShell: New-Item -ItemType Directory -Force "$HOME\.claude\skills" | Out-Null; Copy-Item -Recurse -Force "$bin\skills\ripwire-*" "$HOME\.claude\skills\" (Codex reads $HOME\.agents\skills). --hook is untested on Windows, and scripts/install.sh (the curl installer) does not run there.

Or build from source. Requirements: CMake 3.24+ and a C++23 compiler — that means clang 16+ / AppleClang 15+ (Xcode 15) / gcc 13+, and if your distro's CMake is older than 3.24, pip install cmake or brew install cmake gets a current one everywhere. Nothing else — tree-sitter's core, the grammars listed in THIRD_PARTY.md and the test framework are vendored under third_party/deps, so there is no download step and no package manager to satisfy. Prove that with the network off: add -DFETCHCONTENT_FULLY_DISCONNECTED=ON and the build still completes.

Two builds, two jobs — pick by what you are doing:

# building to USE it — the fast binary (Release implies LTO; scripts/pgobuild.sh adds PGO, what CI ships)
cmake -S . -B build-release -DCMAKE_BUILD_TYPE=Release && cmake --build build-release -j

# building to WORK ON it — plain configure, no build type (why that matters: the trap, under the fold below)
cmake -S . -B build && cmake --build build -j

See Languages for supported source and document formats.

To put it on PATH, ./install.sh builds and atomically installs the binary plus the matching skills/ and hooks/ assets into a detected prefix (Homebrew's if present, ~/.local otherwise; override with RIPWIRE_INSTALL_PREFIX). Set RIPWIRE_ACTIVATE_CODEX=1 to also refresh Codex's skill links and advisory hooks from that same staged version; activation is otherwise explicit.

The CLI is the recommended baseline because it works in every shell-capable agent; the MCP server is optional, for agents whose workflow benefits from persistent tool registration. Full walkthrough, all six clients: Agent setup.

The trap, spelled out: never configure the dev tree (build/) with -DCMAKE_BUILD_TYPE=Release. Release defines NDEBUG, which compiles the degrade-path alerts out and blinds the gates that assert them — and every gate and bench number is measured against build/, so changing that tree's flavour silently moves all of them at once. Release belongs in its own tree (build-release/ above; ./install.sh builds its own build-install/ the same way). CI builds both flavours on purpose — see CONTRIBUTING.md.

The honesty contract, in one line: every count ripwire cannot prove is a total ships labelled a floor, every truncation is disclosed where it happens, and a zero means none found — never none exists. Two runs over the same tree are byte-identical, and a warm run equals a cold one. That is a contract, gated on every pull request and every push to main, not a tendency. The full discipline — and the losses published next to the wins →

Six independent evidence families, ranked by how many of them agree — never one blended score. Pointed at this repository's 4,956 eligible functions, 2-of-6 agreement leaves 401 worth a second look: an 8.1% shortlist. Pooled over five corpora (n = 27,889) no two families correlate above +0.168, which is what makes agreement corroboration rather than one metric counted twice.

--quality-panel joins six independent evidence families (structural shape, lexical naming, syntactic-confusion idioms, git churn history, cross-file colocation, and non-local mutable state) and ranks by the count of families agreeing, never a weighted composite — averaging correlated metrics and calling it several is the Maintainability Index's well-known failure mode. On this repository the panel measures 4,956 eligible functions and narrows them to 401 worth a second look at 2-of-6 agreement — an 8.1% shortlist, not a guess — and the largest correlation between any two families, pooled across five independent corpora (n = 27,889), is +0.168: the families really are measuring different things. The six-family table above shows what each finds on this repository's own source; the sections below are the parts that need more than a row.

nest= is a max, so it cannot tell a long function from a tangled one

The structural family's nest= reports the single deepest line in a function. One line at depth 9 and a thousand lines at depth 9 produce the same number — which means a long blocked-sequential body (a run of shallow scoped steps, its max set by one inner loop nobody has to hold in their head) is indistinguishable from a tangled one that sustains depth for hundreds of lines. Every consumer of nest= inherited that blindness: the panel's structural family, --biggest-first's rank, the ensemble join.

--metrics now emits the profile beside the max — humps= (how many maximal regions reach the nesting bar, CodeScene's "bumpy road": a rise above the threshold then a fall, so repeated missing abstractions read differently from one deep tangle) and deep= (how many lines lie inside them, against the loc= already on the row). Both come from the same fused walk that already computes ccx/nest, at zero extra parsing cost; deep= is a disclosed floor (deep_floor="1"). Both are absent exactly when nest < the bar — not-deep, never a hidden 0. deep counts lines and humps counts regions, and two regions can share a line — a one-line if(c){x;}else{y;} at the bar is two regions on one line — so deep below humps is legal output rather than a defect. On this repository's own source:

loc and nest alone rank main and dispatchMcpLine beside ingest and buildGraph; the profile separates them, and it promotes ur_walkTree — 87 lines, so no size bar fires, yet proportionally the densest thing in the table. This changes no ranking: humps > 0 is exactly nest >= bar, which is precisely when the nest bar already fired, so the family count and the panel's shortlist are untouched. It is strictly more evidence on rows that already appear — a reader can tell the two shapes apart without opening the file.

The panel also carries one join, and it is deliberately not a seventh family: a row whose structural evidence includes deep= (a body that sustains depth at the nesting bar) and that no indexed test reaches is annotated join="deep+untested" — the pair where a refactor is most wanted and least safe, put side by side because both facts are already on the row. It changes nothing: not fam=, not of=, not the order, not which rows appear (counting it would be the structural family wearing a second hat). The root reports tested_scope= (symbols any indexed test reaches — the join's honest denominator) and deep_untested= (rows carrying the annotation across the whole row set); at tested_scope="0" no indexed test reaches anything here, so "untested" would be a fact about what was crawled rather than about the code, and the annotation is emitted on no row.

Two verbs sit beside the panel, not inside its six-family join — worth knowing the boundary rather than blurring it:

• --field-affinity (cache-friendly co-access) is explicitly not a panel family, by unit: it measures which struct fields are read together but declared far apart, and its subject is a type, not a function — attributing a struct's finding to the functions that touch it would be a claim the lens itself never makes (docs/EVALS.md §9.9.2). MainDispatch (src/main.cpp:1335, the 144-byte struct threaded through nearly every verb) still carries 12 real findings against a separation cost of 92.88 — fields read together in the same call routinely cross cache-line boundaries. Chilimbi, Davidson & Larus's cache-conscious structure definition (PLDI 1999), validated on real hardware counters; the advice-not-transform posture (report a split, never auto-reorder a struct) follows Hundt, Mannarswamy & Chakrabarti (CGO 2006). This is a genuinely rare kind of tool: code review catches cache-unfriendly patterns constantly, but every adjacent tool that reasons about memory-access shape (Intel Advisor's pattern classifier, DMon, PerfLint) does it by running the program first — a two-round adversarial literature and patent search found no shipping tool and no published work that does this statically, before a line executes (tier: RARE BUT REAL, the full citation trail and hedged claim wording in docs/LINEAGE.md). The same verb now also classifies each loop's access shape — index/handle-based (predictable, the hardware prefetcher can hide the latency) vs. pointer-chase (data-dependent, no struct layout fixes an unhideable per-hop stall) — and, for genuine chases, checks whether the pointer you dereference to reach the next node sits next to the payload you're about to read, since that cache-line fetch is unavoidable and colocating there is a strictly higher-value fix than generic field reordering. On this repository: 1,374 loops classified, 5 genuine pointer-chases found in a codebase deliberately built handle-based rather than pointer-linked (guardrail G2) — the lens staying quiet on code written to avoid the problem is itself a check that it isn't firing at random. Ships entirely report-only: an A/B benchmark against a real 64 MB shuffled linked list measured a mostly-null result, so the ranking-affecting half of this feature is a provable no-op until a blind real-corpus validation session clears it — reported here at the same honesty level as everything else in this table, not oversold ahead of the evidence.
• The cache-* lint pack + --with-profile (cache-friendly access patterns — the other half of the locality story, shipped 2026-08-07/08) covers what --field-affinity deliberately does not: eight AST shapes practitioners agree hurt — node-based containers, vector<T*>/vector-of-indirect (the "matrix as vector of vectors"), heap allocation inside loops, p = p->next chase advances, a[b[i]] gather subscripts, by-value shared_ptr parameters, and existing manual prefetches flagged for re-measurement — loop-fenced by span algebra, C-family only, facts never verdicts. The honesty numbers, both directions: on this repository the aggressive rules fire only in benches and test fixtures, zero in shipping src/ (guardrail G2 holding is itself the check the rules aren't firing at random), and a 13-agent adversarial triage of all 327 findings confirmed zero as fix-worthy — every plausible refactor died on "win unmeasurable without a profile". That gap is exactly what --lint --with-profile=FILE closes: it joins a RIPWIRE_PROFILE build's own per-scope hardware counters (#PROF_TSV) onto findings, so a row carries heat_total_ms / heat_l1d_mpki from a real run — static shape × measured PMU weight, the two halves of SYZYGY's advice mode (Hundt, CGO 2006) finally in one command. Worked example: the one surviving refactor candidate (flattening the Louvain adjacency) was settled by its new PROFILE_SCOPE in a single measured run — 5.2 ms, 5.9% of the verb — a wasted afternoon prevented by a number (docs/CACHELINT.md holds the full catalog, the wave-2 specs, and the compiler-handled myths deliberately not checked).
• --biggest-first (renamed from --readability, which still works — a stderr note points scripts at the new spelling) is a sibling lens, not a panel family either — the one classic model in the tree with a published closed form: Halstead volume (Halstead, Elements of Software Science, 1977) and the Posnett/Hindle/Devanbu sigmoid fit (MSR 2011, doi:10.1145/1985441.1985454), fitted on snippets of 20 lines or fewer — past that the fitted score saturates and only the ordering stays meaningful, which is exactly how the verb is used: largest-first, never as a grade. Halstead's volume specifically (not the later, less-trusted difficulty/effort derivatives) is among the metrics shown to track measured cognitive load directly (Peitek, Apel, Parnin, Brechmann & Siegmund, ICSE 2021, doi:10.1109/ICSE43902.2021.00056) — --biggest-first emits volume and stops there; difficulty and effort are computed nowhere in this tree. A ranking lens, never a grade, and here is what it actually orders: on ripwire's own history at the pinned v0.6.2 tag (412 function pairs mined from 80 refactor/simplify/cleanup commits), the order between two versions of a function followed the sign of its token-count change in 96.0% of pairs — read a move as more or fewer tokens, not as more or less readable. Of the 412, 154 (37.4%) ran the commit's implied direction and 258 (62.6%) ran opposite it; Halstead volume drove 91.1% of those 258; a separate self-consistency check confirms the formula computes exactly what it says it computes, so this is a construct-validity finding about the ordering claim, not an arithmetic bug. (First recorded as 484 pairs / 30.2% from an unpinned git log --all walk that does not reproduce — full derivation, the instrument fix and the retracted figure: docs/EVALS.md §8.) WITHDRAWN: the ordering claim is withdrawn — stratified into narrow token-count bands, the later-fix association disappears in 8 of 10 deciles (CIs include 1), so the order this verb produces is better explained as a residual size proxy, measured in the lens's own units, than as an independent readability signal (derivation: docs/EVALS.md §8). The lens's computation is unchanged pending a proper human study, and --help=--biggest-first carries the same figures where a CLI reader meets them.
• --naming-consistency is the lexical family's one exception to "evidence, never advice": every other lens in this panel tells you WHAT is wrong, never a computed fix. Case-style consistency is the one property with a corpus-derivable answer — on this repository's src/, camelCase is the dominant convention at 1,677/1,803 (93.0%) agreement, and the verb flags 136 off-convention names with a mechanically recombined propose= value for each (no dictionary, no synonym judgment — see What it answers).
• --lint --naming-locals points those same naming rules at local variable names — the thing a human reviewer flags immediately in a sprawling function and no static tool measured until this session. Opt-in, off by default: on this repository, a plain --lint finds 2,225 findings; adding --naming-locals finds 3,198 — 973 findings that were structurally invisible a moment ago, scoped tightly (only inside functions already flagged large/complex, only locals nested two blocks deep for the short-name rule) so it doesn't just relabel every loop counter in the tree. Ships disabled by default on purpose: this repository's own history includes a naming rule that shipped on plausibility and was later measured to flag its best-named functions — see the withdrawn-rule note below — so a rule this new stays opt-in until a real-corpus audit clears it.

Full citation table, evidence tiers, and what got measured and withdrawn (a naming rule that flagged this repository's best-named functions, kept as the standing argument for measuring before shipping) → docs/LINEAGE.md.

Four real invocations against this repository, each printed as the binary actually prints it: --callers (and why its count is a floor), the default ranked map (and what amb= admits), --test-gate (exit 4 while obligations remain), and --from-trace (feed it the error itself, not a paraphrase of one).

Output is minified — one line, no whitespace between tags — so the excerpts below are wrapped for reading, and each one's leading legend comment is elided. Nothing else is edited, except that corpus-size numbers (file/symbol/edge counts, the ranked-map header's token/ambiguity tallies, PageRank k= values, and the test-gate example's script_gates_unmodelled= — a count of the script runners under test/, recursively) drift as this repository grows: the ranked map elides those specifically, and says so again at the point of use, and the test gate additionally trims its <u> rows down to 2 of the 25 the real run prints, behind a trailing ….

Ten seconds, no index server, no embeddings, no API key — a parse and a call graph, built on the spot. The rows below are a real capture: the callers and their files are gate-held current (test/readmeexamplecheck.sh), the :line suffixes were true when captured and drift as the files grow — nothing can keep a line number true in a document, so it is not claimed here.

$ ripwire . --callers=rankGraphTeleport
<callers of="rankGraphTeleport" defs="1" count="7" root="." hop_tested="0" hop_untested="7" counts_floor="1">
<s t="fn" n="runEval" p="src/eval.h:171"/>
<s t="fn" n="rankGraph" p="src/graph.h:3445"/>
<s t="fn" n="anchoredLexicalRank" p="src/graph.h:3995"/>
<s t="fn" n="churnDecayRanking" p="src/main.cpp:1157"/>
<s t="fn" n="churnRankedGraph" p="src/main.cpp:1191"/>
<s t="fn" n="runDefaultMap" p="src/main.cpp:1295"/>
<s t="fn" n="getIndex" p="src/mcpindex.h:1108"/>
</callers>

counts_floor="1" is the point. Call edges are extracted from source text by name, so dynamic dispatch contributes no edge (a call through a function pointer or callback is an edge only when ONE function is bound to that variable in scope and the variable never escapes — its address taken or reference-bound — and a macro-generated call site — tagged role="macro" — only when its function-like #define is indexed): count="7" is a floor, and the element says so before you read a single row.

The ranked map — the default run, capped to three symbols so it fits here:

$ ripwire . --top-k=3
<!-- files=… symbols=… edges=… shown=3 est_tokens=… ambiguous=… unresolved=…
     precise=… skipped_oversize=… order=important-first -->
<r est_tokens="435">
<f p="./src/infra/svector.h" layer="infra">
<s t="method" n="size" sc="svector" k="…"></s>
<s t="method" n="push_back" sc="svector" amb="2" k="…">
<c n="buf" l="…,…"/><c n="grow" l="…"/></s>
</f>
<f p="./src/scipoverlay.h">
<s t="method" n="empty" sc="ScipOverlay" k="…"></s>
</f>
</r>

files=/symbols=/edges= and the k= rank values are elided: this repository is the corpus here, so they move every time README.md itself gains or loses a line, which is not what the example demonstrates. The rest of the header measures the whole corpus, not the excerpt — the ambiguous= tally is the call-graph completeness gauge, and amb="2" on a row says two of that symbol's calls hit a name with several definitions and the resolver guessed. Read the source when which-target matters.

The test gate — --test-gate names the obligations and exits 4 while any remain. Captured with an uncommitted change in the tree: changed="1" and the rows below appear only because something was actually pending. A clean clone exits 0 with every changed/impacted/test count at zero. The structural counts describe the tree, not git status, so they stay nonzero even then: script_gates_unmodelled= (script-to-binary test runners the call graph cannot see), script_gates_registered=, script_gates_mapped= and script_gates_unresolved_dynamic= (the suite's registered shell gates, and how many of them map to their dependencies), and the resolver gauges graph_ambiguous=, graph_unresolved= and graph_unindexed=. The capture below predates the script_gates_* registry counts and those gauges:

$ ripwire . --test-gate          # exit code: 4
<test-gate changed="1" impacted="80" tests="2" untested="76" shown_tests="2" tests_capped="0"
           shown_untested="25" untested_capped="1" script_gates_unmodelled="332" at="9cf0b16f3+dirty">
<t p="./test/adaptivecutshapefix/adaptive_cut_shape_test.cpp" run="bash test/adaptivecutshapecheck.sh"/>
<t p="./test/verify_radix.cpp" run_unknown="1"/>
<u sym="buildGraph" p="./src/graph.h" ccx="712"/>
<u sym="dispatchMcpLine" p="./src/mcp.h" ccx="428"/>
…
</test-gate>

A run= attribute appears only when a runner is derivable from real evidence — a test-dir script whose stem matches the harness, or whose text names it; for TypeScript/JavaScript, a file already recognized as test code (test//tests//__tests__/, or a _test./.test./_spec./.spec. name — the __tests__/ directory convention is shared with every language, the rest are TS/JS's own) whose name ALSO matches vitest/jest's own test-name shape (.test./.spec., or living under __tests__/ at all, jest's own two default conventions — never a .d.ts declaration file) — whose nearest package.json names vitest, jest, or node's own test runner. Its own package.json is AUTHORITATIVE for the whole subtree below it: a non-empty, non-placeholder scripts.test entry decides the runner (or decides none — a same-named dependency never overrides it, whether that dependency sits in the same manifest or a parent one), and only a manifest with NEITHER a real scripts.test NOR a vitest/jest dependency is skipped in favour of one further up. A TS/JS file with no manifest evidence of its own still falls back to the SAME test-dir shell/Python driver search every other language uses — a named driver beats an unguessed default. A row with none says so — run_unknown="1", never a guessed suite command — and a <t> or <g> row carries one or the other, never neither. A <g hops="2" n="3" p="a,b,c" run_unknown="1"/> row is two or more contiguous runner-less rows whose attributes are byte-identical, served as one: n= is how many, p= is their paths verbatim in list order, and the disclosure is paid once per group rather than once per row. Everything else stays its own row — a row with a run=, a row whose attributes differ from its neighbour's, and a path containing a comma, which is never grouped at all, so p= splits on , into exactly n= paths. A shown=/total= over these rows counts test FILES: a <g> row is n= of them.

script_gates_unmodelled="332" is the same discipline: script-to-binary is not a call edge, so those gates are invisible to this walk, and the number says so rather than letting tests="2" read as complete. The <u> rows are the untested blast radius: impacted symbols that no test in the corpus reaches — never a file's own <file-scope> module scope (a top-level statement or anonymous-callback body), since nothing in any language can name it and no test could ever be written for it; it still counts toward impacted= when it is a real caller in the blast radius, just never as an obligation. Those excluded owners are counted, not dropped without a trace: untested_modscope="N" (always present, alongside untested=) says how many, so a change whose only reader is an untestable entrypoint discloses why untested= reads zero instead of looking like there was nothing to find. The capture above predates that attribute (and a few other root attributes added since), so its root lacks it; today's root carries untested_modscope="N" immediately after untested=.

A TS/JS file with NO manifest evidence of its own (no package.json anywhere in the crawl boundary, or the nearest one decides nothing) still gets one more chance before falling to the shell/Python driver search above: its own bytes are read for a node:test import or require — import test from "node:test", import { test, describe } from "node:test", require("node:test"), single or double quoted (#60). This is a real parse, not a substring scan: a "node:test" mention inside a comment or an unrelated string literal is not evidence. An explicit package.json scripts.test (or vitest/jest dependency) still wins over this — including an authoritative-but-unrecognized script, which is a decided "no" — so the import fallback only ever fires on what was previously run_unknown="1".

For a .ts/.mts/.cts file — whether the runner was named by scripts.test: "node --test" or inferred from the import above — a run= command is spelled only where the checks below find nothing that makes Node refuse to start it. They are read off the repository's own bytes, so they cannot see the Node that will run it, and a refusal is run_unknown="1", never a guess:

• .tsx and .jsx never get a command. Node's type stripping does not cover .tsx at all (ERR_UNKNOWN_FILE_EXTENSION), and plain node cannot load a .jsx file at all, on any Node version — both stay run_unknown="1" unconditionally.
• Every relative import/require must resolve exactly as written, in the test file and in every local TypeScript module it reaches. Node's module resolver, under type stripping, never probes an extension and never maps a .js specifier onto a .ts source — the exact shapes tsc-, tsx- and bundler-run TS code uses to import its own siblings. So a command is spelled only when every relative (.//../) static import/export … from specifier or require(...) argument names a file that exists on disk at that exact path. The walk follows each specifier that lands on a .ts/.mts/.cts file, reads at most 64 modules, and a walk cut at that bound stays run_unknown="1" too.
• No module on that walk may use syntax type stripping cannot erase. Node strips types and rewrites nothing, so an enum, a namespace with runtime code (or holding only declare statements), the legacy module M {} keyword, a constructor parameter property, an import alias (import A = B.C, import x = require(…)), export =, an angle-bracket assertion <T>x or a decorator stops it with ERR_UNSUPPORTED_TYPESCRIPT_SYNTAX (or a parse error) before any test runs; any of them outside a declare stays run_unknown="1". A type-only namespace and a declare enum are erased and do not count.
• The command is additionally Node-version-aware, from engines.node. --experimental-strip-types itself exists from Node 22.6 only (an older Node refuses to start at all with it); stripping is ON BY DEFAULT — the flag becomes a harmless no-op — from Node 22.18 and separately from Node 23.6 (two floors, not one continuous range: 23.6 turned it on first, the 22.x line got it later by backport, and a bare 23.0–23.5 does not have it). This tool cannot see which Node will run the emitted command, so it reads engines.node from the nearest manifest: the bare node --test <file> when that range proves every satisfying Node has stripping on by default; the flagged node --experimental-strip-types --test <file> when it proves >= 22.6 but not provably default-on, or when there is no manifest at all (a stated assumption of a Node that strips types with the flag, not a guess at an unseen runtime); and run_unknown="1" when the range admits ANY Node below 22.6 (a plain >=18/^20, or a compound range like >=24 || ^20, where every || alternative must pass on its own) or cannot be read with confidence at all. Each alternative is read for its upper bound too, because the default-on versions have a gap: ^22.18.0 gets the bare form, but >=22.18 also admits 23.0–23.5 and keeps the flag.

Every node:test file, .js or TypeScript, must also load as the module kind its own syntax needs. A file with a static ES import/export runs as an ES module only as .mjs/.mts, under "type": "module" in its nearest package.json, or on a Node with default module-syntax detection (22.7 and later, 20.19 on the 20.x line). Without one of those the command stays run_unknown="1": an explicit "type": "commonjs" (or a .cjs/.cts file) turns detection off, and with no "type" the engines.node range must prove detection — >=22.7 does, >=20.19 does not, since it admits 21.x. With no engines.node at all, a TypeScript file keeps the stated assumption above and a .js file stays run_unknown="1", since its command otherwise rests on no assumption at all. A CommonJS file (require, no ES import/export) runs either way.

.js/.mjs/.cjs never need the flag. Their one version question is the runner itself: the --test flag exists from Node 18.1 and, by backport, 16.17 — never on 17.x, and 18.0 has the node:test module but not the flag. So engines.node must not admit a Node below 18 without it: ^16.17.0, >=18 and >=18.1 get the bare form, while >=16, >=16.17 and 16.17 - 18 (they reach 17.x) stay run_unknown="1", and so does a range confined to 18.0.x such as 18.0.x. A hyphen range A - B is bounded by B. >=18 is accepted although it admits 18.0: that is one release from April 2022, the command fails loudly there, and refusing the most common spelling would make the answer useless on most projects. No engines.node at all keeps the bare form.

A TS/JS run_unknown="1" can still mean the manifest genuinely names nothing recognized (and the test file itself names no node:test import either), one of the refusals above, or a real runner this tool does not yet derive: node's own test runner invoked through tsx (when neither the manifest nor the test file's own bytes name node:test directly) and bun's test runner. These stay an honest unknown rather than a guess; pnpm/yarn-prefixed test scripts derive correctly today (spelled npx …, which finds a local binary first).

From an error, not a paraphrase of one — --from-trace takes a stack trace, sanitizer report or compiler error on stdin or from a file, maps its frames onto indexed symbols innermost-first, and returns the innermost in-corpus body with them:

./build/ripwire . --from-trace=asan_report.txt
cmake --build build 2>&1 | ./build/ripwire . --from-trace=-

Every published number lives in docs/EVALS.md with the instrument that produced it, the corpus it ran on, and the in-tree file that pins it — alongside a counterexample section and a list of the claims this project deliberately does not publish. Read those first if you are here to check whether the tool is oversold.

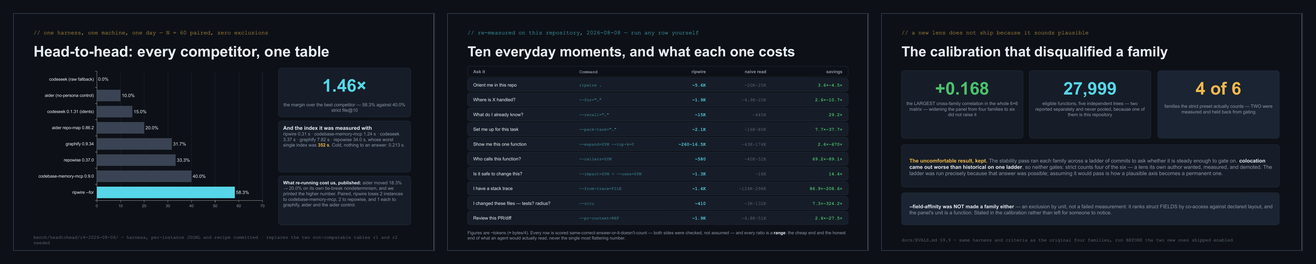

Round 4 (re-run in full 2026-08-08): 58.3% strict file@10 against 40.0% for the best competitor — a 1.46× margin, at a 0.31 s index. N = 60 paired instances, zero exclusions, one binary (the profile-guided release build that now ships), one evaluator, all arms re-run on the same day. Strict file@10 = all gold files inside the top 10.

Round 4 (first run 2026-08-06; re-run in full 2026-08-08 on the profile-guided release build) — N = 60 paired instances, zero exclusions, one binary, one evaluator. Every competitor was re-run on the same day against the same ripwire binary and the same evaluator, so the arms are directly comparable to each other. Earlier rounds could not say that: r1 (2026-07-13/14) and r2 (2026-08-03) each scored a different subset against a different binary, which is why this page used to print two tables and ask the reader not to compare them. Strict file@10 = all gold files inside the top 10. Harness, per-instance JSONL, and a reproduction recipe: bench/headtohead/r4-2026-08-06/.

Paired, ripwire's losses are 2 instances to codebase-memory-mcp, 2 to repowise, 1 each to graphify and aider; codeseek never beat it. Cold from nothing to an answer — parse, rank, reply, no cache — ripwire takes 0.213 s, against a ~34 s index-then-query for repowise, whose worst single index in this run was 352 s. That comparison is only possible because ripwire's own index was measured this round; r2 recorded competitor index walls and deliberately refused to tabulate them, since a one-sided cost table is not evidence.

What re-running cost us, stated because it is the reason to re-run at all. codebase-memory-mcp is the true runner-up at 40.0% — r1 credited it with 26.7%, and scoring it fairly against today's binary raised it. graphify rose 21.7% → 31.7% and aider 13.3% → 20.0% the same way. The margin over the best competitor is therefore 1.46×, not the 1.75× that two separately-dated tables implied; the old framing flattered us by comparing today

…
